OSRAM DURIS® S 8, GW P9LR35.PM

OSRAM DURIS® S 8, GW P9LR35.PM
×

Product features

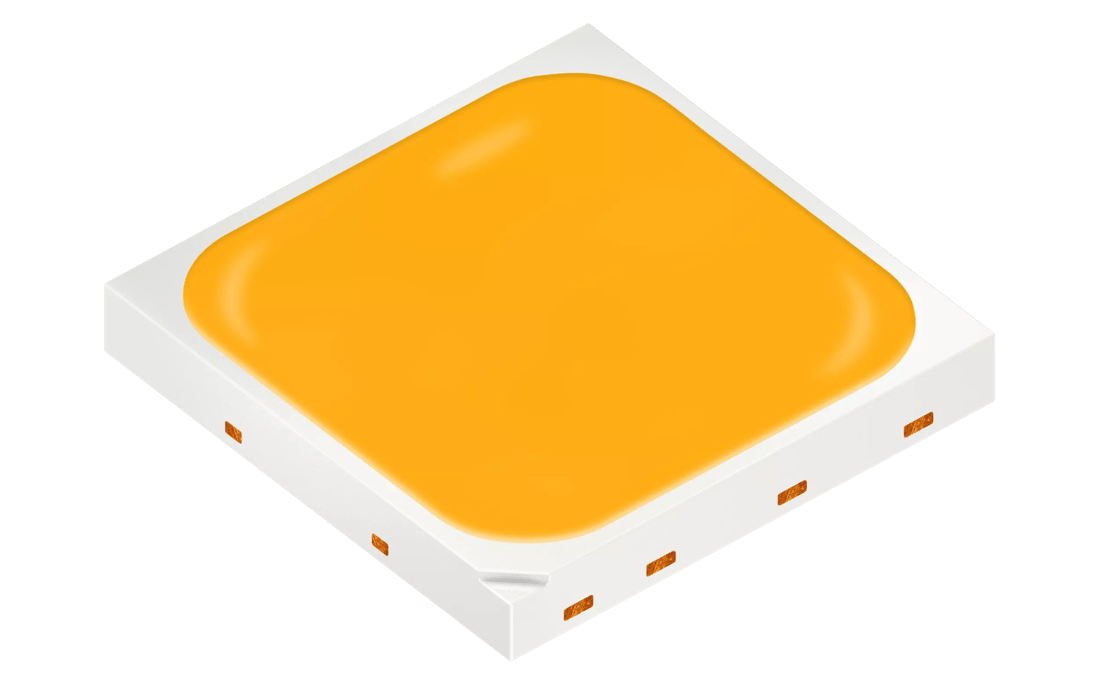

The latest Duris® S 8 generation of LEDs offers animpressive efficacy performance combined with DLCPremium Lifetime achievement. This 5050 leadframepackage offers customers a perfect solution for HighEfficacy and Compact Luminaire designs for OutdoorProfessional lighting; High-Bays, Streetlights, AreaLights, Flood Lights.

Downloads

Datasheet

GW P9LR35.PM

Datasheet / 1.9 MB

GW P9LR35.PM Gen5

Datasheet / 1.2 MB

Application note

Brilliant Mix and Mix-to-Match — Professional white for general lighting applications

Product Related / 1.7 MB

Light quality — Color metrics

Product Related / 1.6 MB

Light quality — White light parameters

Product Related / 2.0 MB

Chemical compatibility of LEDs

General Information / 2.0 MB

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General Information / 1.7 MB

Details on photobiological safety of LED light sources

General Information / 1.4 MB

Dry pack information

General Information / 1.2 MB

Importing rayfiles and ray-measurement files of LEDs

General Information / 903.2 KB

LED 可靠性与使用寿命

General Information / 1.7 MB

Lebensdauer und Zuverlässigkeit von LEDs

General Information / 1.9 MB

Preventing LED failures caused by corrosive materials

General Information / 1.2 MB

Reliability and lifetime of LEDs

General Information / 1.9 MB

Cleaning of LEDs

Processing and Handling / 795.1 KB

ESD protection while handling LEDs

Processing and Handling / 1.8 MB

Further details on lead free reflow soldering of LEDs

Processing and Handling / 1.4 MB

Handling of silicon resin LEDs

Processing and Handling / 943.8 KB

LED 无铅回流焊的详细介绍

Processing and Handling / 1.7 MB

Manual lead-free soldering of LEDs

Processing and Handling / 1.9 MB

Measuring of the temperature profile during the reflow solder process

Processing and Handling / 1.2 MB

PCB technologies for LED applications

Processing and Handling / 3.1 MB

Processing of SMD LEDs

Processing and Handling / 4.5 MB

Recommended pick-and-place tools for LEDs

Processing and Handling / 6.0 MB

Weitere Hinweise zum bleifrei Reflow-Löten von LEDs

Processing and Handling / 1.4 MB

Comparison of simple LED circuits for low power LEDs

Driving of LEDs / 1.2 MB

Determination of resistances for brightness compensation

Driving of LEDs / 873.5 KB

Dimming InGaN LEDs

Driving of LEDs / 992.7 KB

LED driving technology for long term flexibility

Driving of LEDs / 1.1 MB

Measurement, calibration and measurement uncertainty of LEDs

Measurement / 2.5 MB

欧司朗光电半导体有限公司 LED 的测量、

Measurement / 2.4 MB

Optical simulation

Optical Simulation

Optical simulation

CAD files

CAD Data

CAD files

Electrical simulation

Electrical Simulation

Electrical simulation

Ordering codes

Product Type Description Order No. Availability
GW P9LR35.PM-M1M5-XX58-1 ΦV = 180 ... 230 lm, 2700 K (IF = 180 mA) Q65112A8726
GW P9LR35.PM-M3MF-XX52-1-G5 ΦV = 200 ... 280 lm, 5700 K (IF = 180 mA) Q65113A0278
GW P9LR35.PM-M1M7-XX58-1-G5 ΦV = 180 ... 250 lm, 2700 K (IF = 180 mA) Q65113A0904
GW P9LR35.PM-M4M8-XX53-1 ΦV = 210 ... 260 lm, 5000 K (IF = 180 mA) Q65113A5241
GW P9LR35.PM-M4M8-XX55-1 ΦV = 210 ... 260 lm, 4000 K (IF = 180 mA) Q65113A5237
GW P9LR35.PM-M3M8-XX56-1 ΦV = 200 ... 260 lm, 3500 K (IF = 180 mA) Q65113A5373
GW P9LR35.PM-L9M5-XX510-1 ΦV = 170 ... 230 lm, 2200 K (IF = 180 mA) Q65113A5355
GW P9LR35.PM-M3M8-XX51-1 ΦV = 200 ... 260 lm, 6500 K (IF = 180 mA) Q65112A9861
GW P9LR35.PM-M3M8-XX57-1 ΦV = 200 ... 260 lm, 3000 K (IF = 180 mA) Q65112A9860
GW P9LR35.PM-M3M4-XX52-1 ΦV = 200 ... 220 lm, 5700 K (IF = 180 mA) Q65112A6819
GW P9LR35.PM-M4MF-XX53-1-G5 ΦV = 210 ... 280 lm, 5000 K (IF = 180 mA) Q65112A8364
GW P9LR35.PM-M3M7-XX57-1-G5 ΦV = 200 ... 250 lm, 3000 K (IF = 180 mA) Q65112A8662
GW P9LR35.PM-M3M9-XX51-1-G5 ΦV = 200 ... 270 lm, 6500 K (IF = 180 mA) Q65112A8661
GW P9LR35.PM-M4MF-XX55-1-G5 ΦV = 210 ... 280 lm, 4000 K (IF = 180 mA) Q65112A8660
