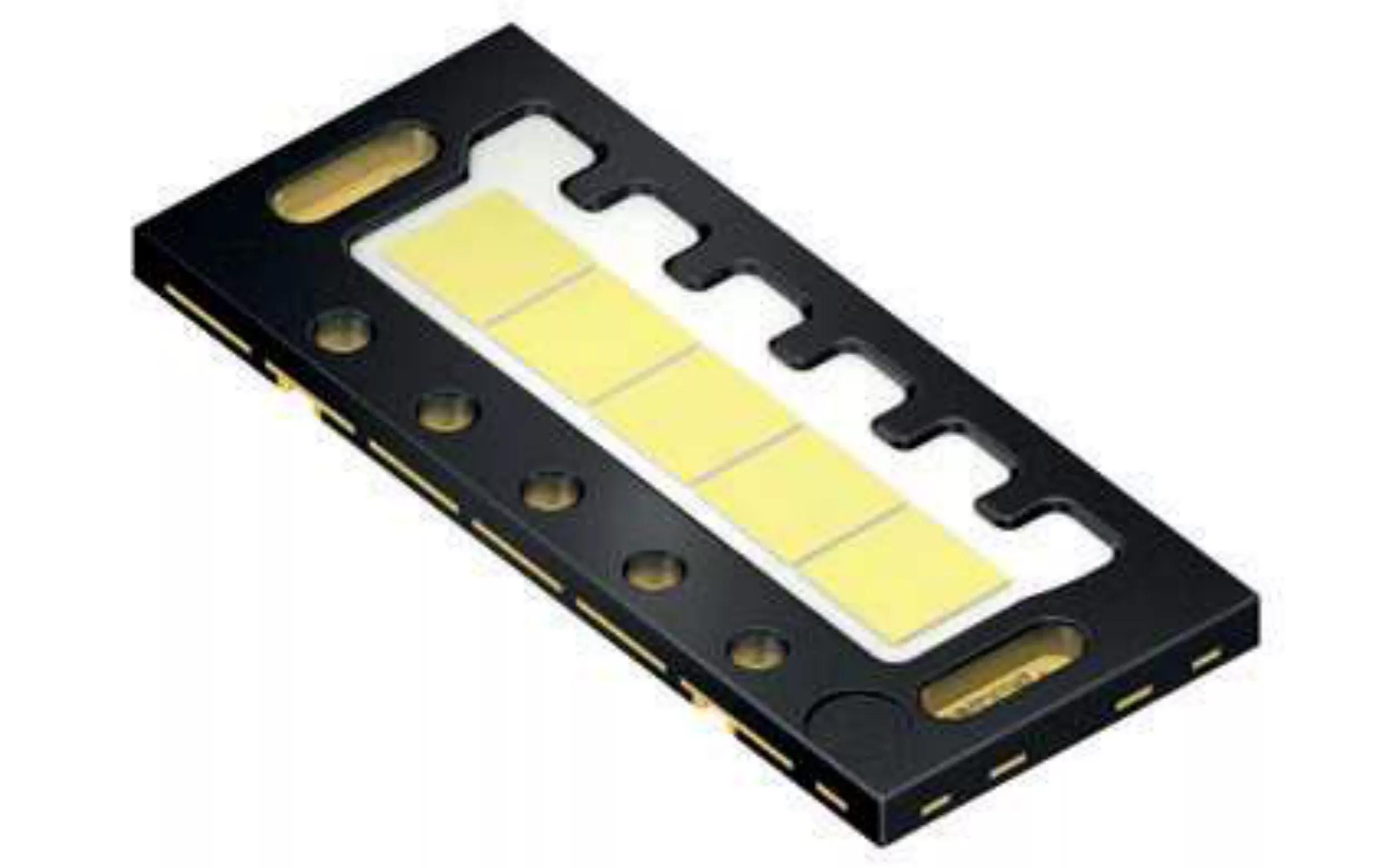

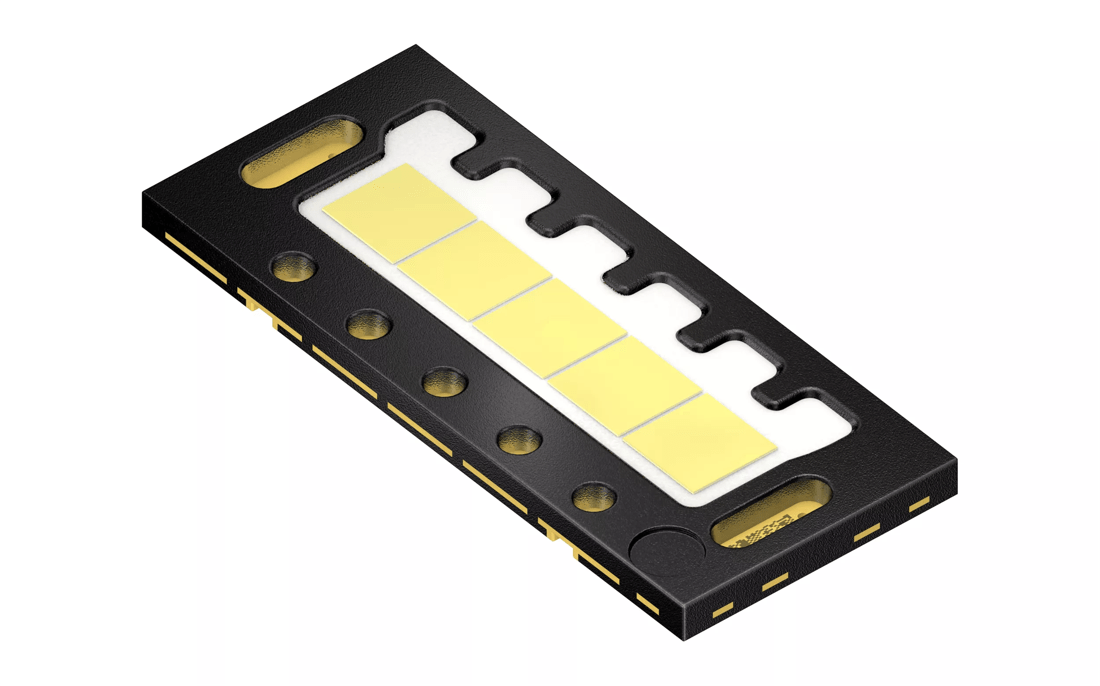

OSRAM OSLON® Black Flat X, KW5 HQL631.TK

×

Description

The OSLON Black Flat X product family offers LED devices with the highest efficiency in the ams OSRAM portfolio. This feature makes it the perfect light source for standard forward lighting applications with a high focus on system cost. The SMT device is very stable, durable and can be used with standard processes. The pad geometry of the widely used OSLON Black Flat product platform was further optimized to allow for excellent thermal conditions, while the already known, outstanding contrast of the package concept is kept on the familiar level.

Details

Parameters

Color of emission
White
Electrical power
16.0 W
Ultra High
Brightness
ΦV
2380 lm
IV
770 cd
ΦE
7410 mW
IE
2400 mW/sr
Beam angle
120 °
Operating temperature
Top min.
-40 °C
Top max.
135 °C
Dimension
l
8.81 mm
w
3.75 mm
h
0.5 mm

Ordering codes

Product Type Description Order No. Availability
KW5 HQL631.TK-CDCJ-6L07M0-2LAL ΦV = 2140 ... 2700 lm (IF = 1000 mA) Q65113A1295
KW5 HQL631.TK-CCCJ-4L07M0-2LAL ΦV = 2050 ... 2700 lm (IF = 1000 mA) Q65113A4587
KW5 HQL631.TK-CCCH-4L05M0-2LAL ΦV = 2050 ... 2600 lm (IF = 1000 mA) Q65113A1246
