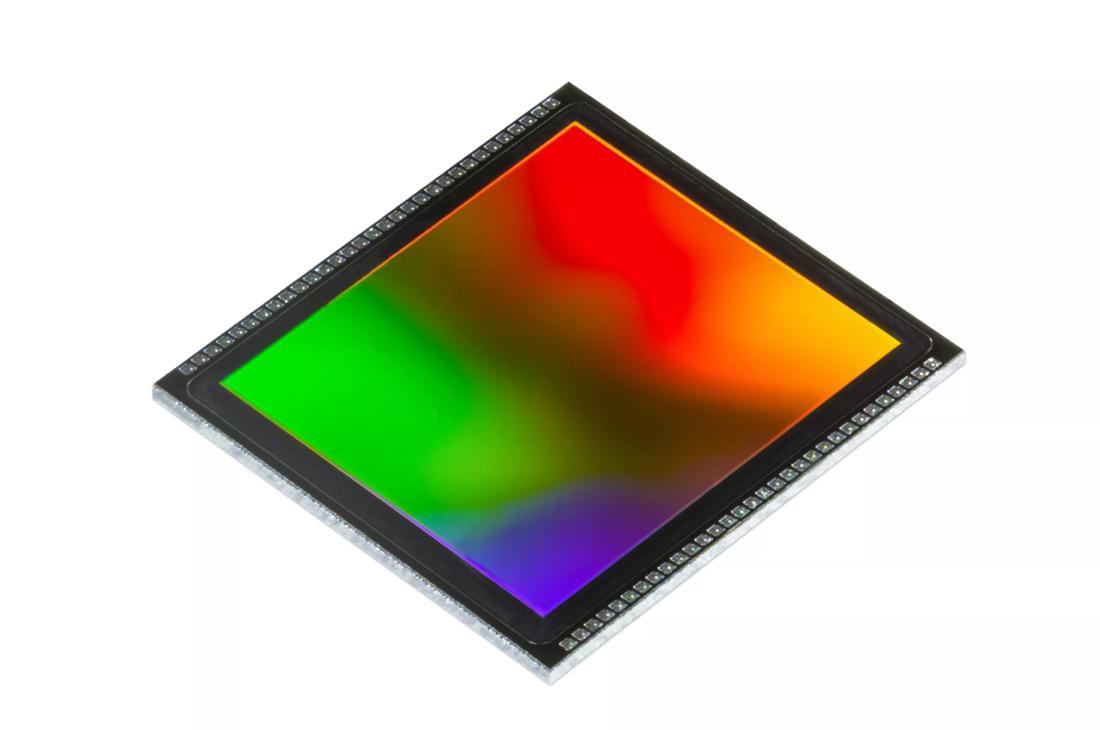

Details
Features
- Up to 40% at 940nm, 58% at 850nm
- In-pixel HDR mechanism
- Global shutter pixel
- MIPI CSI-2 / D-PHY
- Up to 120 fps @ 10-bit data
Benefits
- Best in class quantum efficiency
- HDR mode provides > 100 dB DR
- Motion blur robustness & low PLS
- Standard data interface
- High speed
Parameters
Resolution
1.3
MP
Shutter type
Global
Frame rate
max.
120
fps
Optical format
1/4"
Dynamic range
57
dB
Pixel pitch
2.7
µm
2.7
µm
Function
area scan
CRA
Yes
Package
Bare Die
PLCC
Package dimension
h
0.81
mm
l
7.8
mm
w
8.4
mm
Cover glass
Plain
CFA option
Mono
ADC mode
8
bit
10
bit
Channels
output
4
Interface
output
I²C
Low-voltage differential signaling
Output interface speed
800
Mbps
