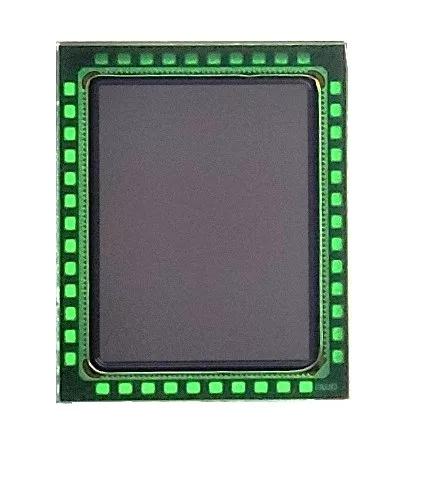

ams Mira050 CMOS Image Sensor

ams Mira050 CMOS Image Sensor
×

Description

Mira050 is a compact 0.5 MP Near IR enhanced global shutter image sensor designed for 2D and 3D consumer and industrial machine vision applications. The sensor has a small 2.79 µm pixel size with high sensitivity made possible by a state of the art BSI technology. The sensor has a MIPI CSI-2 interface to allow easy interfacing with a plethora of processors and FPGAs. Due to its small size, configurability and high sensitivity both in visual as well as NIR, the Mira050 is well suited for 2D and 3D applications, which include Active Stereo Vision, Structured Light Vision and AR/VR. High sensitivity in NIR enables increased measurement range and allows overall system power consumption optimization which is key for battery powered consumer and industrial applications.

Request full datasheet here
Datasheet
Mira050 0.5 MP NIR-Enhanced high speed global shutter image sensor
English
Download
User guide Select & order
Contact us Support

Details

Features

  • Programmable registers
  • High sensitivity and NIR enhanced pixel
  • Context switching
  • On-chip processing
  • On-chip advanced power management
  • On-chip temperature sensor
  • Illumination synchronization trigger

Benefits

  • Compact size with high resolution and bit depth
  • NIR enhanced with high sensitivity
  • On chip noise reduction
  • Reduced off-chip processing
  • Extended battery operation
  • Ideal in low light conditions

Parameters

Resolution
0.5 MP
Shutter type
Global
Frame rate
max.
120 fps
Optical format
1/6"
Pixel pitch
2.79 µm
2.79 µm
Function
area scan
CRA
Yes
Package
CSP
Bare Die
Package dimension
h
0.64 mm
l
2.29 mm
w
2.83 mm
Cover glass
Anti-reflective coating
CFA option
Mono
RGB
RGBIR
ADC mode
8 bit
10 bit
12 bit
Channels
output
1
Interface
output
I²C
Output interface speed
1500 Mbps

Ordering codes

Downloads

Datasheets

Mira050 0.5 MP NIR-Enhanced high speed global shutter image sensor

Short datasheet
EN
DE
CN
JP

User guides

Environmental documents

Images
