ams TMF8828 configurable 8x8 multi-zone Time-of-Flight Sensor

ams TMF8828 configurable 8x8 multi-zone Time-of-Flight Sensor
New
×
New

설명

The TMF8828 is a direct time-of-flight (dToF) sensor in a single modular package with associated VCSEL. The dToF device is based on SPAD, TDC and histogram technology and achieves 5000 mm detection range. Due to its lens on the SPAD, it supports 3x3, 4x4, 3x6 and 8x8 multizone output data and a wide, dynamically adjustable, field of view. A multi-lens-array (MLA) inside the package above the VCSEL widens up the FoI (field of illumination). All processing of the raw data is performed on-chip and the TMF8828 provides distance information together with confidence values on its I2C interface.
데이터시트 User guide Select & order
문의 지원

세부 정보

주문 코드

제품 유형 설명 주문 번호 재고 여부
TMF8828-1A
상태 정보
완전 가동 생산
생산 전
새로운 설계 계획 없음
주문 및 배송 가능
단종
제품 요청
TMF8828-1AM
상태 정보
완전 가동 생산
생산 전
새로운 설계 계획 없음
주문 및 배송 가능
단종
지금 구매
Distribution partners:
Digi-Key
지금 구매
Mouser
지금 구매

다운로드

기타 문서는 다운로드 센터에서 검색하세요

데이터시트

TMF8820/21/28 Multizone Time-of-Flight Sensor

Datasheet
EN
DE
CN
JP

사용 설명서

애플리케이션 노트

기술 문서

환경 문서

이미지

Related boards, kits & accessories

ams TMF882X_EVM_ST Evaluation kit

ams TMF882X_EVM_ST Evaluation kit

The TMF882X Evaluation Kit comes with everything needed to evaluate the TMF8820, TMF8821 & TMF8828 multi-zone direct Time-of-Flight sensors. The evaluation kit comprises of a ToF sensor enclosure and sample glass, USB type A to micro-USB cable, USB Flash drive with EVM GUI software and EVM documentation.
정보

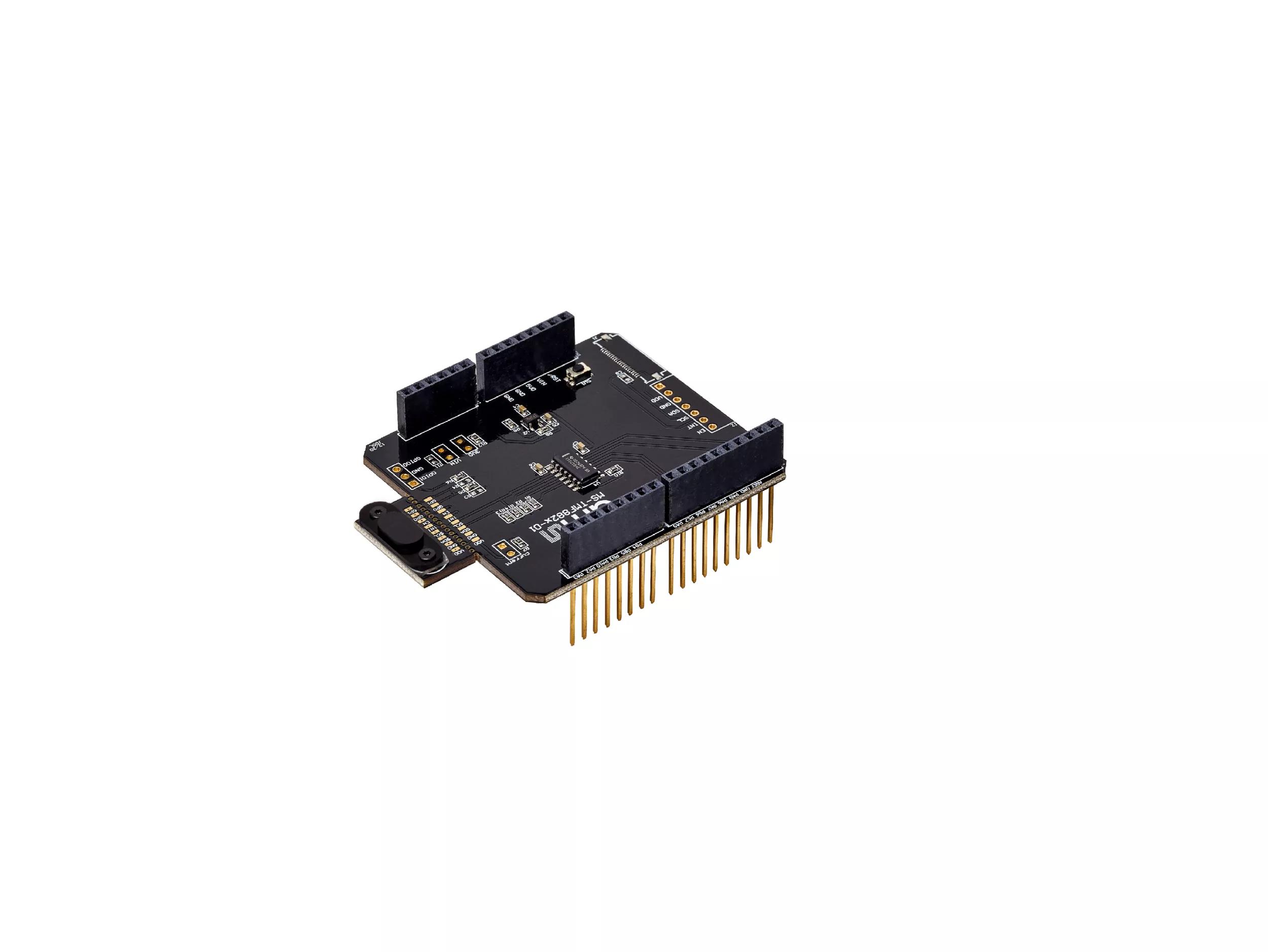

ams TMF882X_EVM_AB_MCU-SHIELD Evaluation kit

ams TMF882X_EVM_AB_MCU-SHIELD Evaluation kit

The TMF882X MCU Shield board is desgined to fit the Arduino UNO µC development board format.  This board features a small breakaway section which includes the TMF8828 device, 4 air gap spacers and 4 cover glass samples are included within this kit.
정보
2 제품 총계

관련 제품

ams TMF8820 3x3 multi-zone Time-of-Flight Sensor

ams TMF8820 3x3 multi-zone Time-of-Flight Sensor

The TMF8820 is a direct time-of-flight (dToF) sensor in a single modular package with associated VCSEL. The dToF device is based on SPAD, TDC and histogram technology and achieves 5000 mm detection range. Due to its lens on the SPAD, it supports 3x3 multizone output data and a wide, dynamically adjustable, field of view. A multi-lens-array (MLA) inside the package above the VCSEL widens up the FoI (field of illumination). All processing of the raw data is performed on-chip and the TMF8820 provides distance information together with confidence values on its I2C interface.
데이터시트 정보
ams TMF8821 configurable 4x4 multi-zone Time-of-Flight Sensor

ams TMF8821 configurable 4x4 multi-zone Time-of-Flight Sensor

The TMF8821 is a direct time-of-flight (dToF) sensor in a single modular package with associated VCSEL. The dToF device is based on SPAD, TDC and histogram technology and achieves 5000 mm detection range. Due to its lens on the SPAD, it supports 3x3, 4x4 and 3x6 multizone output data and a wide, dynamically adjustable, field of view. A multi-lens-array (MLA) inside the package above the VCSEL widens up the FoI (field of illumination). All processing of the raw data is performed on-chip and the TMF8821 provides distance information together with confidence values on its I2C interface.
데이터시트 정보
