Details
Features
- dToF technology with high sensitivity SPAD detection
- Fast Time-to-Digital Converter (TDC) architecture
- Sub-nanosecond light pulse
- 1 – 500cm distance sensing, may be extended to 1000cm by FW download
- On-chip histogram processing
- 940nm VCSEL Class 1 Eye Safety
- Supports 1.2V I2C interface

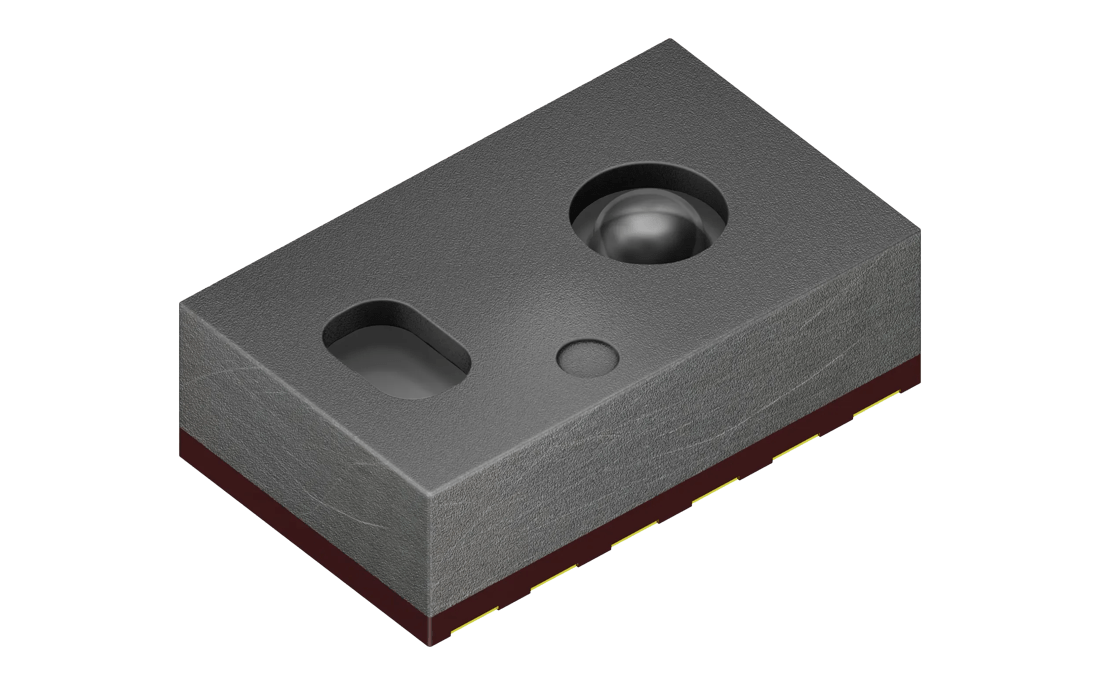

- Industry’s smallest modular OLGA 2.2 x 3.6 x 1.0 mm package
Benefits
- Delivers high SNR, wide dynamic range and no multi-path reflections
- Enables dark and sunlight environment distance measurement within ±5%
- Provides best-in-class resolution ranging mode detection sensing
- Enables accurate distance measurements
- calibration, dirt or smudge removal and crosstalk compensation
- Eye-safety circuitry stops VCSEL driver if VCSEL fault occurs
- Connects to a wide range of host processors
- Reduce board space requirements, enables low-profile system designs in
Parameters
Sensor zones
single
Number of detection zones
1
Detection distance
max.
500
cm
Wafer level optical filters
No
Field of view
30
°
Operating ambient temperature
min.
-40
°C
max.
85
°C
Supply voltage
min.
2.7
V
max.
3.5
V
3.1
V
Wavelength
940 nm
Package
OLGA12
Package dimension
l
3.6
mm
w
2.2
mm
h
1.0
mm
Interface
input
I²C
output
I²C
Seamless integration of single-zone direct Time-of-Flight sensors
Deep-dive in seamless integration of single-zone dToF Sensors for high accuracy in ultra low power mode. Join us for this engineer-to-engineer webinar where we will explore how the TMF8806 dToF sensor revolutionizes single-zone direct Time-of-Flight systems by combining cost-effectiveness, accuracy, and power efficiency. Our expert, David Smith, will dive into the sensor’s innovative features, including fast start-up times, industry-leading power consumption, and built-in firmware for seamless integration.
Learn more about:
- The simplicity in I2C commands and register-level access and how it provides ease of customization and the ability to future-proof your designs
- To leverage advanced preconfigured distance modes, superior accuracy of ±3% beyond 200mm, and simple calibration for improved manufacturability
- How optimizing VCSEL pulse settings enhances signal quality and system performance tailored to your application needs and operating conditions
- Industry leading ultra-low power mode in active ranging
×
