Details
Features
- Direct ToF (dToF) technology with high sensitivity SPAD detection
- 10mm to 11,000mm distance sensing
- Configurable 8x8, 16x16, 32x32 & 48x32 zones
- 80° FOV (diagonal, aspect ratio 4:3); rectangular SPADs
- Full internal processing
- Raw data streaming including processed distance data due to fast I3C and SPI interface
- 1cm minimum distance and 0.25 mm resolution
- Multi-objects detection. Cover glass smudge tolerant
- -40ºC to 85ºC temperature range

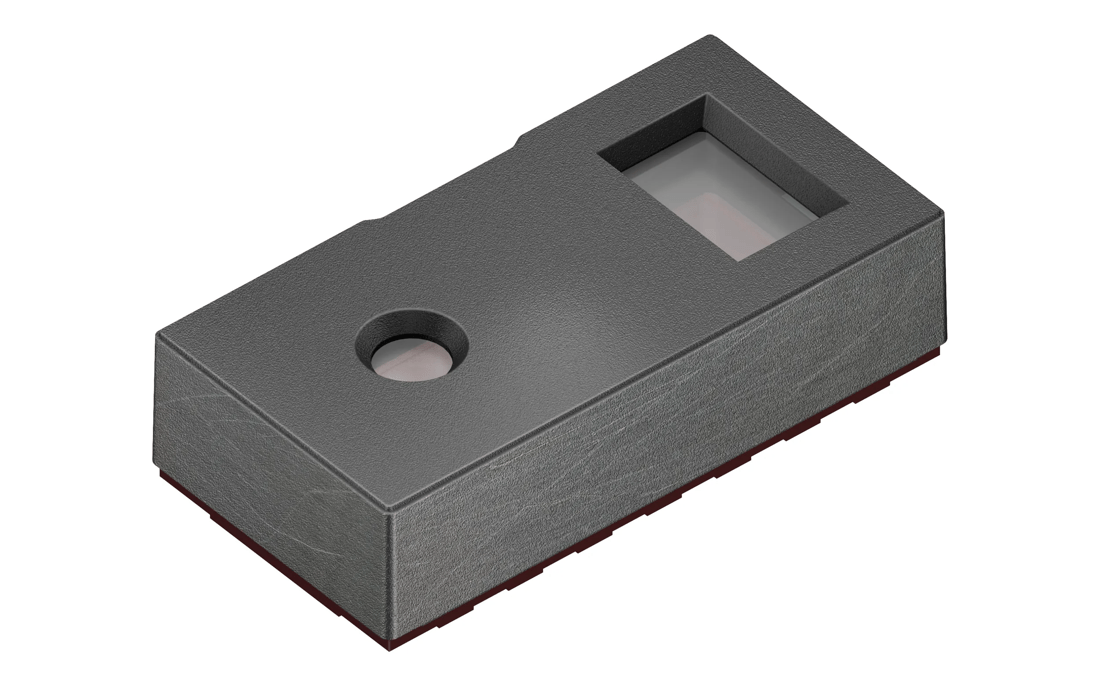

- Module size 5.7 mm x 2.9 mm x 1.5 mm Smallest high resolution dToF sensor
Benefits
- Delivers high SNR, wide dynamic range and no multi-path reflections
- Long range high frequency measurements
- Applicable to a wide range of applications from 8x8 long range mode to high resolution 48x32 mode
- Matches autofocus region of interest of mobile phone cameras including wide angle camera
- Off-load host processing power
- Enables AI applications by providing high speed histogram data
- Support macro range to telephoto range of mobile phone autofocus (LDAF)
- dToF operation with up to 4 objects per depth point
- Suitable for a wide range of commercial and industrial applications
- Allow integrations in space constrained applications
Parameters
Sensor zones
multi
Number of detection zones
1536
Detection distance
max.
1100
cm
Wafer level optical filters
Yes
Field of view
80
°
Operating ambient temperature
min.
-40
°C
max.
85
°C
Supply voltage
min.
2.9
V
max.
3.6
V
3.3
V
Wavelength
940 nm
Package
OLGA18
Package dimension
l
5.7
mm
w
2.9
mm
h
1.5
mm
Interface
input
I²C
I³C
SPI (16MHz)
output
I²C
SPI
I³C
Live Webinar: High-Resolution Multi-Zone Sensing with the TMF8829 dToF Sensor
Discover how precise 3D depth sensing can improve presence detection and spatial awareness in real-world designs, from robotics and logistics to mobile, wearables and other smart appliances.
What you’ll gain:
- A clear introduction to direct Time-of-Flight sensing technology
- A deep dive in multi-zone dToF 3D depth sensing with insight into the TMF8829 sensor: up to 48×32 pixels, 11 m range, and 80° field of view
- Understanding of on-chip processing for distance, confidence, and ambient light data
- Examples of multi-object detection and AI-ready depth data in practice
Where it’s used:
- Depth-based object detection and scene mapping
- Gesture control for headphones and wearables
- Smart appliances such as lawn movers or coffee machines
- Industrial robotics, logistics, and camera autofocuus
Subscribers will get access to additional technical resources. Take your chance to talk to our expert David Smith in our live webinar on January 14, 2026.
×
