ams AS5048B_EVM_MB_STEPPERMOTOR Evaluation board

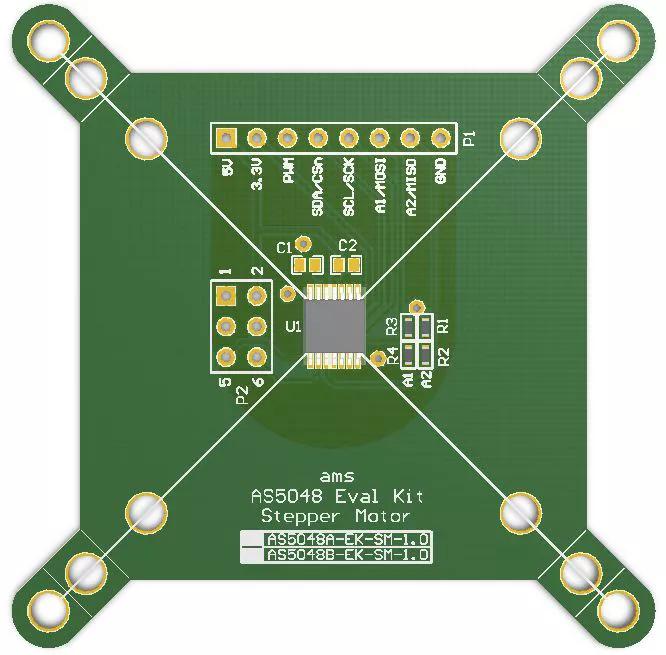

The AS5048B Motor Board is designed to adapt standard size stepper motors with a contactless rotary position sensor for easy and fast evaluation of the IC in the application. The Motor Board includes the PCB with soldered IC, 4 magnet holders with different shaft diameters and the allen key. The 4 distance bolts and the motor are not included. On the connector you get the I2C standard serial interface and PWM pulse width modulation output signals. For more details please download the operation manual.
