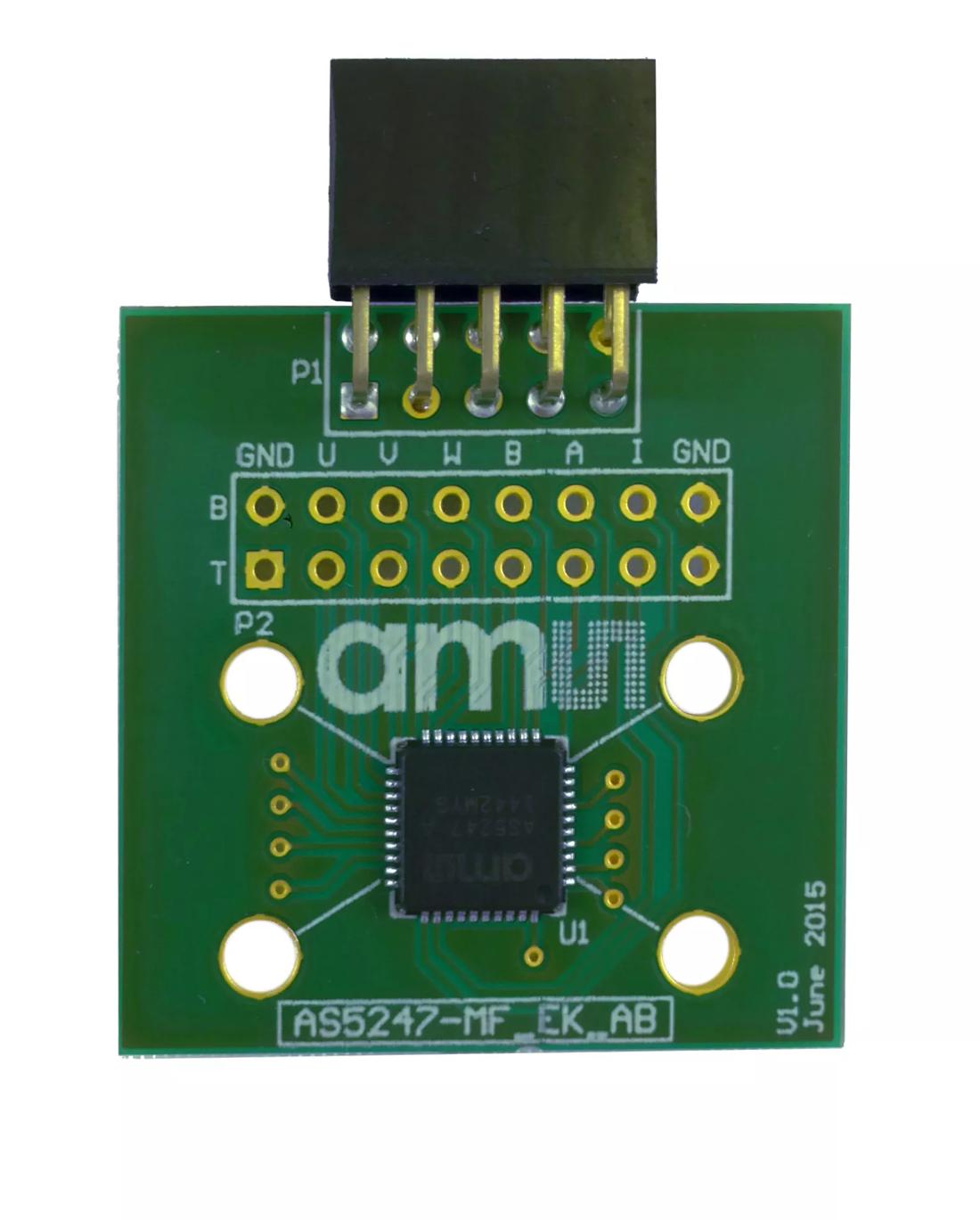

ams AS5247_MF_EVM_AB Evaluation board



The AS5247-MF_EK_AB allows you an easy-to-use evaluation of the principle function of the AS5247 magnetic position sensor in your own system design. This small factor board includes the position sensor with its necessary external components. All relevant signals are available on a 2.54mm header footprint and can be easily wired to your own application.

Ordering codes

Product Type Description Order No. Availability


User guides
