ams AS5600_SO_EVM_POTUINO Evaluation board

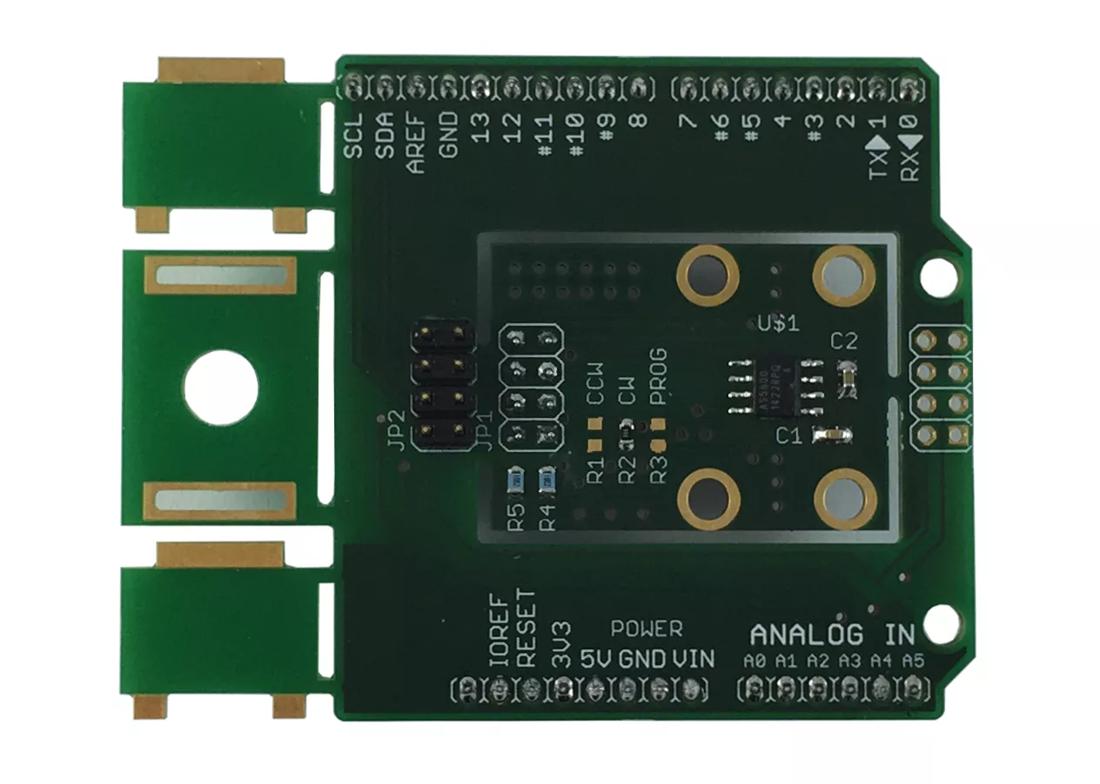

The AS5600-POTUINO is a shield compatible with the Arduino UNO board. It was designed to evaluate the AS5600 Smart Potentiometer IC. The Arduino shield is fully assembled with the AS5600 IC and its necessary external components. It offers different breakout options. A breakout magnet holder is available on the left side of the PCB and in addition, an adapter board breakout is possible. A LabVIEW Evaluation GUI software and example source code is available for download.

Ordering codes

Product Type Description Order No. Availability


User guides
