ams AS5600_SO_REF_RB Reference design board

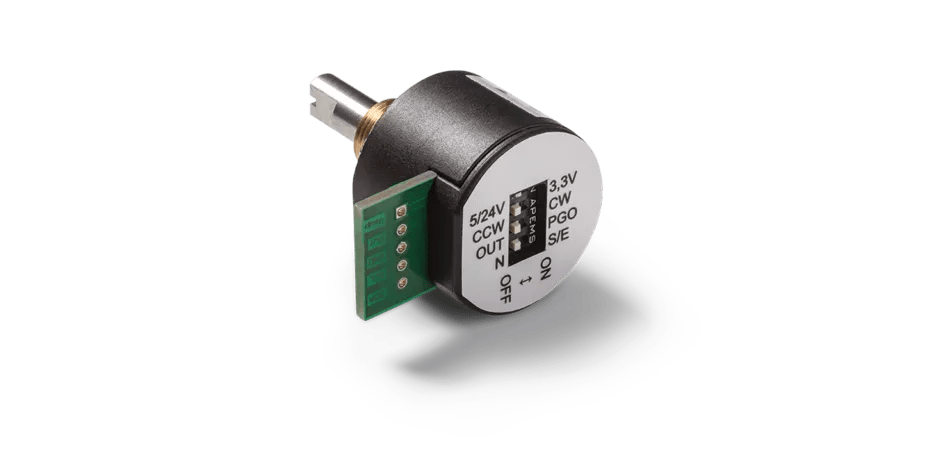

The reference module AS5600-SO_RD_RB is a contactless potentiometer module which is produced by MEGATRON ( and allows an easy and fast evaluation of the AS5600 rotary magnetic position sensor. With this module it is possible to replace an existing potentiometer solution. The module is fully assembled with the AS5600 position sensor and its necessary external components. All relevant signals are available on a 5-way connector and can be easily wired to an existing application. Additionally a 4-way DIP-switch allows you to change the settings of the AS5600.


User guides

User guide
