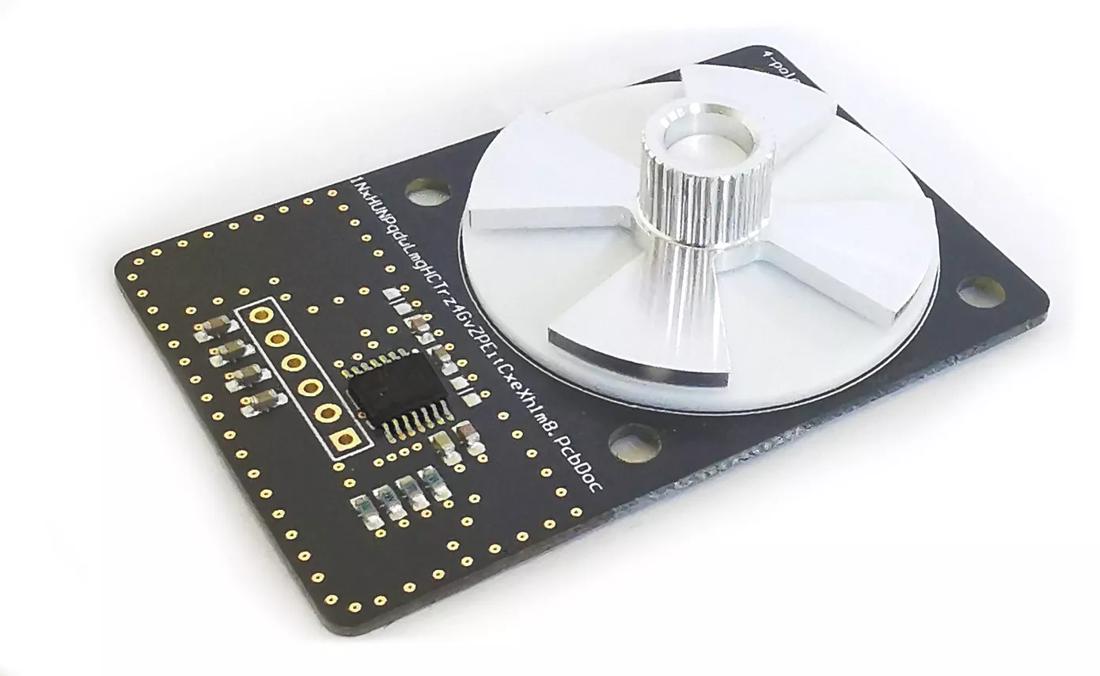

ams AS5715_TS_EVM_RB Evaluation board
×
×
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| AS5715-TS_EK_AB | Reference Board for inductive position sensing | Q65114A1477 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
|
Downloads
User guides
User guide
Images
Images
Related boards, kits & accessories
ams SD4Y-PROGRAMMER_EVM_AC Evaluation accessory
The SD4Y Programmer is an in-system programming tool which is applicable for production environment. The SD4Y programmer supports: digital writing and reading; OTP programming and analog read back for the OTP verification. Additional the SD4Y programmer can use the AMS programming boards.
The GUI and the Labview source code are available. Additional code samples for C; C++ and C# are available.
Download latest software (UProg_SW_package_2v0.zip,
264MB)
ams AS5715R_EVM_PB Evaluation board
The Evaluation Programmer Board allows a quick and easy evaluation of the functionality of the AS5715R inductive position sensors. It can be used easily with the Reference Board or some individual design.
It has a USB interface (for PC connection) and a 6-pin connector for the IC (or reference board). The supply is per USB connection.
