ams AS1115_SS_REF_RB_WHITEGOODS Reference design kit

ams AS1115_SS_REF_RB_WHITEGOODS Reference design kit
×

Description

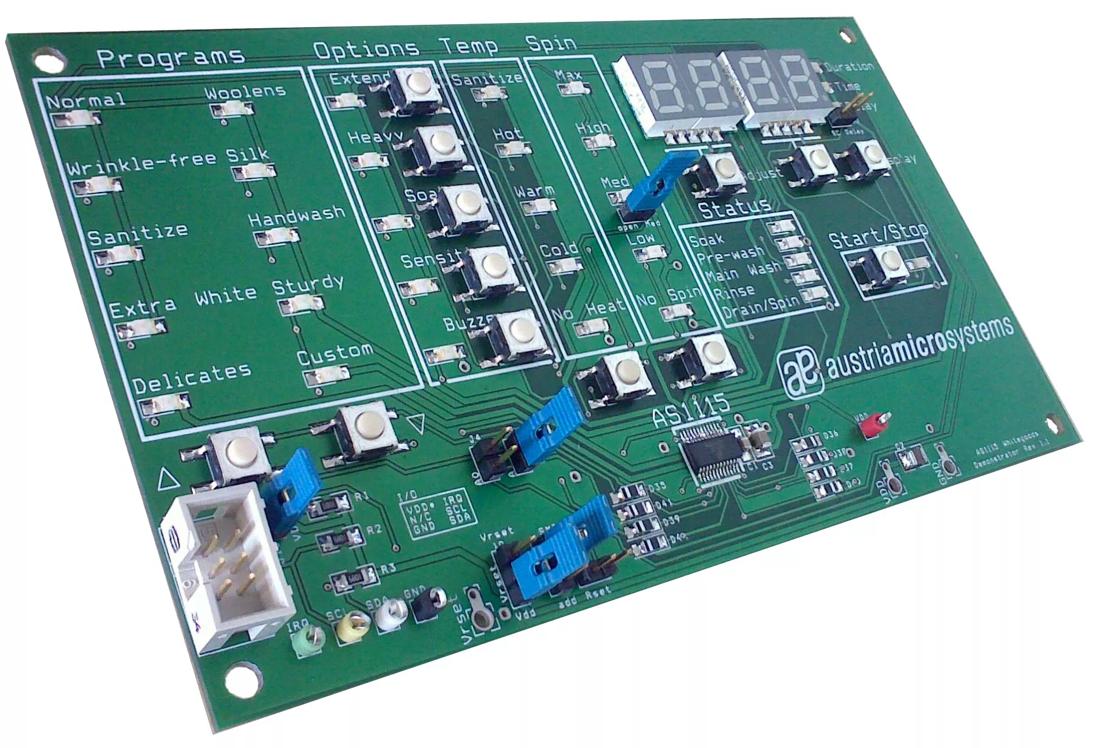

The AS1115 is a 64 LEDs multiplexed LED driver with I²C interface and keyscan. The device is powered via an USB connector from a PC or via an external power supply. The reference design can be controlled via the ams USB box in addition with the evaluation software or with an external device via an I²C interface. The AS1115 reference design comes with 34 single yellow LEDs, 4x7 segment digits and 13 buttons. All of this is controlled by the AS1115.
User guide Select & order
Contact us Support

Ordering codes

Product Type Description Order No. Availability
AS1115-SS_DK_RB WG
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
