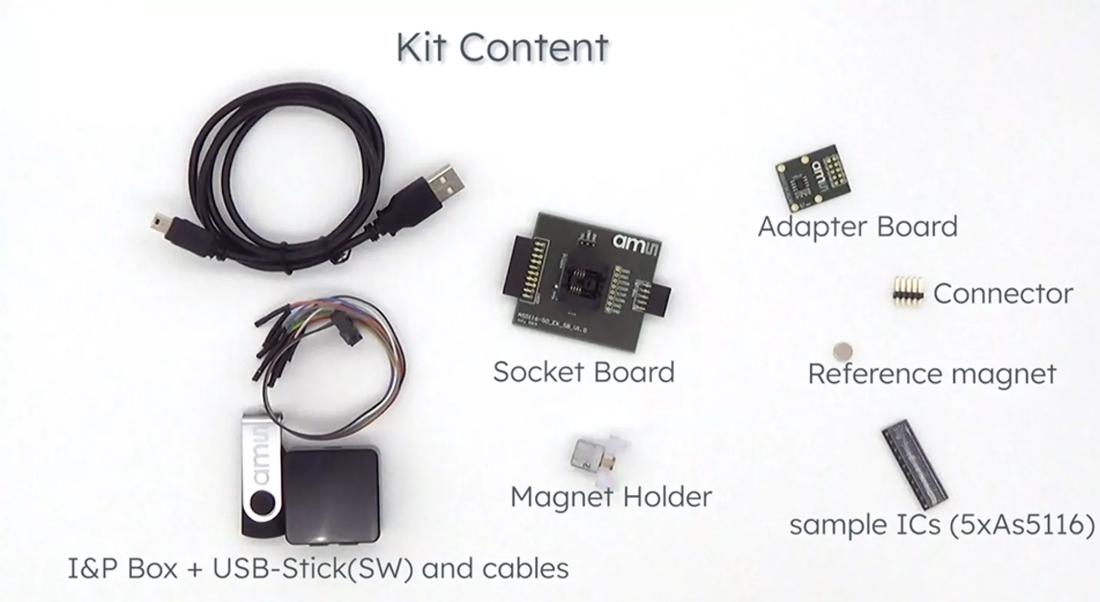

ams AS5116_SO_EVM_SN Evaluation kit
×
×
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| AS5116-SO_EK_ST | Adapter board assembled with AS5116 per default | Q65114A1516 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
|
Related boards, kits & accessories
ams SD4Y-PROGRAMMER_EVM_AC Evaluation accessory
The SD4Y Programmer is an in-system programming tool which is applicable for production environment. The SD4Y programmer supports: digital writing and reading; OTP programming and analog read back for the OTP verification. Additional the SD4Y programmer can use the AMS programming boards.
The GUI and the Labview source code are available. Additional code samples for C; C++ and C# are available.
Download latest software (UProg_SW_package_2v0.zip,
264MB)
ams USB-I-P-BOX_EVM_AC Evaluation accessory
The USB Interface & Programmer Box is an universal evaluation tool for magnetic position sensors with I2C or SPI interface. It comes with a 10-way cable to connect to a supported product on an existing board. The I2C or SPI wires are used for the communication (3.3V mode) and additionally the sensor can be powered from the USB I&P Box. By using the USB I&P Box Software, it is possible to read out the sensor data, write a configuration and to permanently program a configuration.
Hardware and Software requirements: PC with Windows 7 or later and a USB-A port
ams AS5116_SO_EVM_SB Evaluation board
The AS5116-SO_EK_SB socket board is used for quick programming of the AS5116 magnetic rotary position sensors without soldering due to its ZIF socket. This board is used in combination with the USB I&P Box or the SD4Y production programmer. The PCB offers 2 connecting options: The 5-pin dual-row connector on the left side for connecting to the USB I&P Box and the 10-pin dual-row connector on the right side for connecting to the SD4Y Production Programmer. Furthermore, 8-pin header on top gives access to analog signals and GND signals. A ZIF Open-Top-Socket for SOIC8 packages is mounted in the middle. Pin 1 of the IC is indicated by a small dot on the left bottom corner of the socket or by the label on the PCB. All passive components needed for proper operation are included on the PCB. Only a power supply mode of 5 V is possible.
ams AS5116_SO_EVM_AB Evaluation board
The AS5116 Adapter Board is a small PCB allowing simple and quick testing or evaluation of the AS5116 magnetic position sensor without the need to build a test fixture or design an own PCB. The PCB can be connected either to an external microcontroller or to the USB
I&P Box.The connector, 2x5 pin header (not populated), is included to this kit and is required for power supply as well as UART and analog interface.
