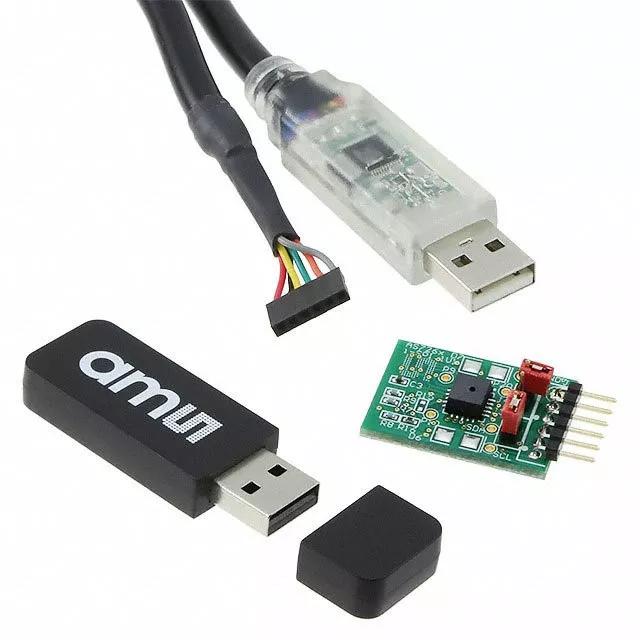

ams AS726X_DEM_SN Demonstrator kit

The AS7261N provides direct XYZ sensor data which conforms to the tri-stimulus standard observer color response of the human eye. A near-IR channel and LED drivers with programmable currents increase application flexibility, including support for electronic shutter applications.The AS7261N integrates Gaussian filters into standard CMOS silicon via nano-optic deposited interference filter technology and is packaged in an LGA package that provides a built in aperture to control the light entering the sensor array. Control and spectral data access is implemented through an I²C register set.

The AS7262 is a cost-effective multispectral sensor-on-chip solution designed to address spectral ID applications. This highly integrated device delivers 6-channel multispectral sensing in the visible wavelengths from approximately 430nm to 670nm with full-width half-max (FWHM) of 40nm. An integrated LED driver with programmable current is provided for electronic shutter applications. The AS7262 integrates Gaussian filters into standard CMOS silicon via nano-optic deposited interference filter technology and is packaged in a LGA package that provides a built in aperture to control the light entering the sensor array. Control and spectral data access is implemented through either the I²C register set, or with a high level AT spectral command set via a serial UART.

The AS7263 is a digital 6-channel multi-spectral sensor for spectral identification in the near IR (NIR) light wavelengths. AS7263 consists of 6 independent optical filters whose spectral response is defined in the NIR wavelengths from approximately 600nm to 870nm with full-width half-max (FWHM) of 20nm. An integrated LED driver with programmable current is provided for electronic shutter applications. The AS7263 integrates Gaussian filters into standard CMOS silicon via nano-optic deposited interference filter technology and is packaged an LGA package that provides a built in aperture to control the light entering the sensor array. Control and spectral data access is implemented through either the I²C register set, or with a high level AT spectral command set via a serial UART.

The AS7264N provides direct XYZ sensor data which conforms to the tri-stimulus standard observer color response of the human eye. In addition, two channels added for measurement of blue spectrum light, plus a near-IR channel enables additional application flexibility. LED drivers with programmable currents are provided for electronic shutter applications. The AS7264N integrates Gaussian filters into standard CMOS silicon via nano-optic deposited interference filter technology and is packaged in an LGA package that provides a built in aperture to control the light entering the sensor array. Control and spectral data access is implemented through an I²C register set.

The AS7261 integrates Gaussian interference filter technology to enable chromatic white color sensor which provides direct XYZ color coordinates consistent with the CIE 1931 2° standard observer color coordinates. Additional mapping of XYZ coordinates to the x, y (Y) of the 2-dimensional color gamut and scales of the CIE 1976 u’v’ coordinate system, providing accurate correlated color temperature (CCT) measurements and color point deviation from the black body curve for white light color in the ∆u’v’ coordinate system. A near-IR channel and LED drivers with programmable currents increase application flexibility, including support for electronic shutter applications. Control and spectral data access is implemented either through either the I²C virtual register set, or via the serial UART enabling use of the high level smart spectral command set.
