Details
Features
- Tri-stimulus XYZ+NIR realized by silicon interference filters
- Integrated programmable LED drivers
- I²C slave digital interface with optional interrupt operation
- 16-bit ADC with digital access
- 20-pin LGA package 4.5mm x 4.7mm x 2.5mm, with built-in aperture
Benefits
- Stable filter conditions over temperature and life time
- Compact true-color sensing, XYZ coordinates direct from the sensor
- Direct register read and write with interrupt on sensor ready
- Signal conditioning on chip
- Sample illumination without external LED driver
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| AS7261N-BLGT |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Downloads
Datasheets
Datasheet
Application note
Product related
Lifecycle documents
Product change notification (PCN)
Images

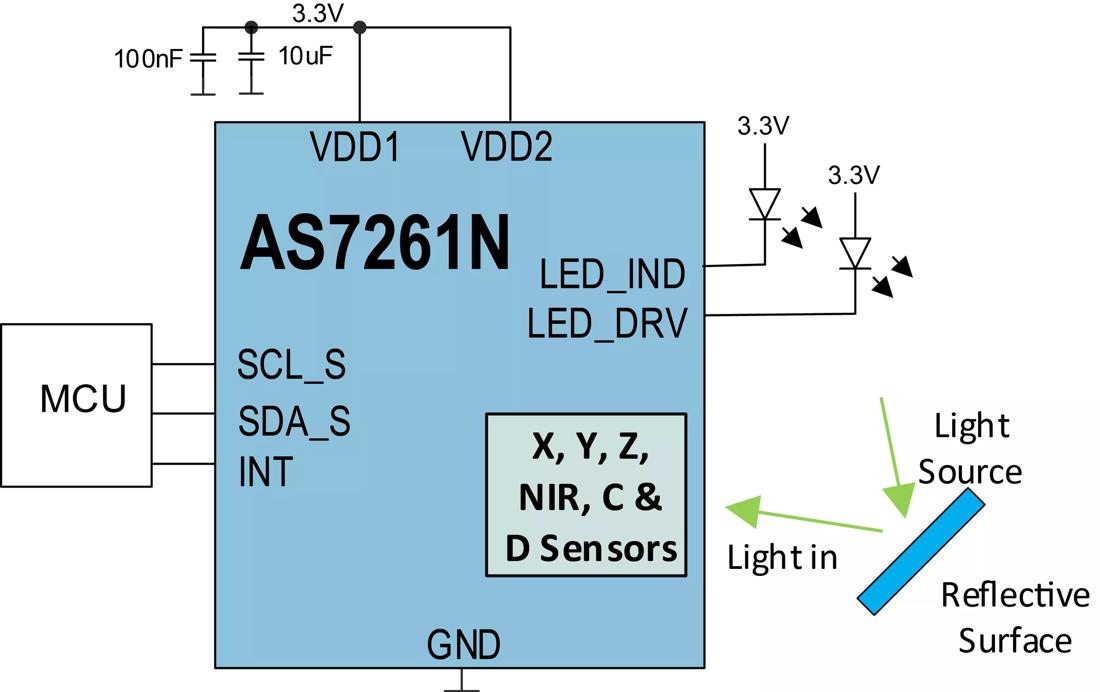

Block diagram
Related Products
ams AS7261 Spectral Sensing Engine
The AS7261 integrates Gaussian interference filter technology to enable chromatic white color sensor which provides direct XYZ color coordinates consistent with the CIE 1931 2° standard observer color coordinates. Additional mapping of XYZ coordinates to the x, y (Y) of the 2-dimensional color gamut and scales of the CIE 1976 u’v’ coordinate system, providing accurate correlated color temperature (CCT) measurements and color point deviation from the black body curve for white light color in the ∆u’v’ coordinate system. A near-IR channel and LED drivers with programmable currents increase application flexibility, including support for electronic shutter applications. Control and spectral data access is implemented either through either the I²C virtual register set, or via the serial UART enabling use of the high level smart spectral command set.
ams AS73211 - JENCOLOR® Digital XYZ Sensor
The AS73211 is a digital XYZ sensor with I2C interface for relative and absolute color measurement and control. The combination of True Color XYZ sensitized photodiodes with a filter function based on the standard CIE 1931/DIN 5033 (human eye perception) and used interference filter technology as leading and most accurate technology of three-range sensors makes the AS73211 more accurate than RGB sensors and guarantee this function without spectral changings over lifetime. The AS73211 is designed with a high dynamic range to measure any light in the visible range (VIS) in environments from sunlight to dark rooms, dimmed LEDs, or dark colored monitors.
