ams AS7261 Spectral Sensing Engine

×

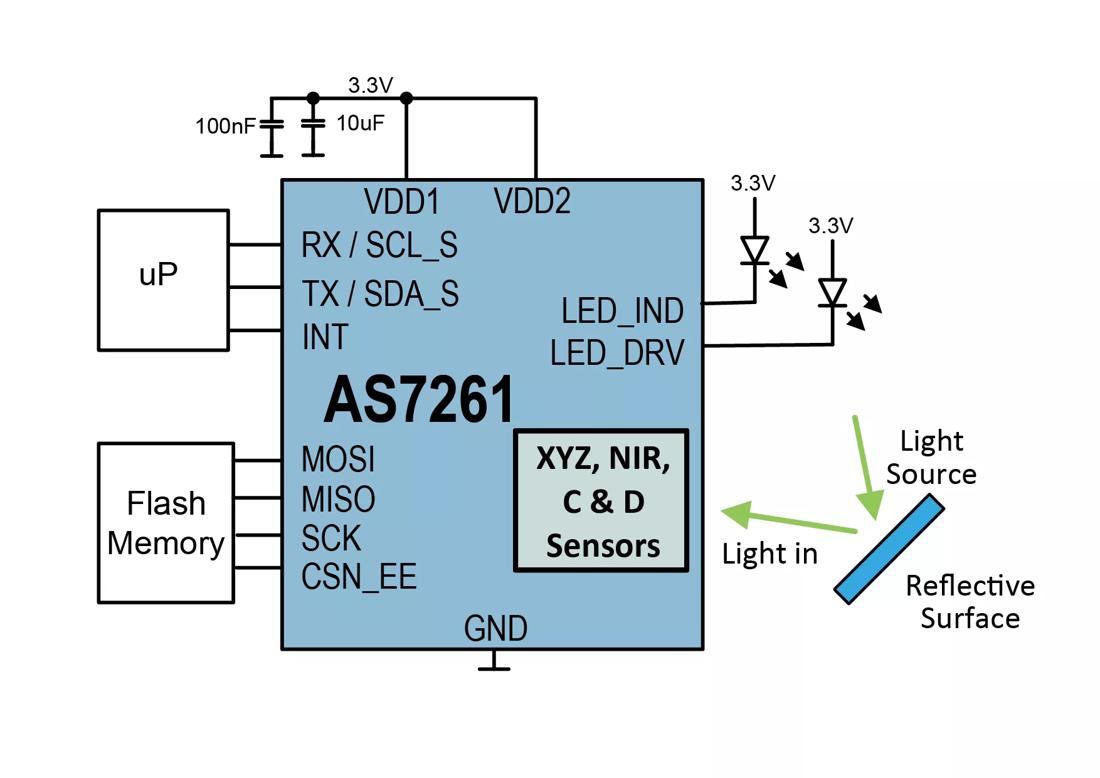

Description

The AS7261 integrates Gaussian interference filter technology to enable chromatic white color sensor which provides direct XYZ color coordinates consistent with the CIE 1931 2° standard observer color coordinates. Additional mapping of XYZ coordinates to the x, y (Y) of the 2-dimensional color gamut and scales of the CIE 1976 u’v’ coordinate system, providing accurate correlated color temperature (CCT) measurements and color point deviation from the black body curve for white light color in the ∆u’v’ coordinate system. A near-IR channel and LED drivers with programmable currents increase application flexibility, including support for electronic shutter applications.

Control and spectral data access is implemented either through either the I²C virtual register set, or via the serial UART enabling use of the high level smart spectral command set.

Details

Features

  • Tri-stimulus XYZ+NIR realized by silicon interference filters
  • Selectable UART or I²C interface
  • 16-bit ADC with digital access
  • Integrated programmable LED drivers
  • integrated micro controller
  • 20-pin LGA package 4.5mm x 4.7mm x 2.5mm, with built-in aperture
  • In-factory calibrated

Benefits

  • Stable filter conditions over temperature and life time
  • Compact true-color sensing, XYZ coordinates direct from the sensor
  • Signal processing on chip, reduced hardware costs
  • Sample illumination without external LED driver
  • Easy connecting to mobile devices or external µController

Ordering codes

Product Type Description Order No. Availability
AS7261-BLGM
AS7261-BLGT
