Details
Features

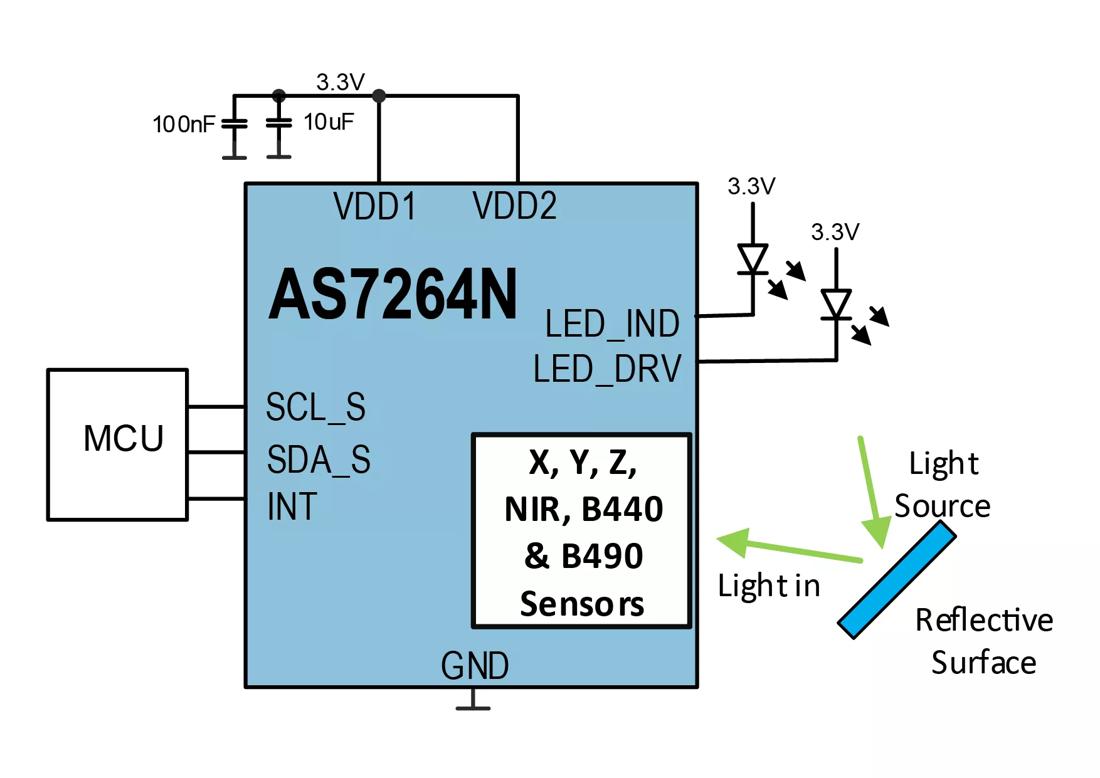

- Integrated interference filters directly deposited on standard CMOS silicon
- XYZ filters + 440nm + 490nm + wide banded NIR band passes
- Integrated 16 bit ADC on chip and low power consumption
- 2 integrated LED drivers
- I²C slave digital interface with optional interrupt operation
Benefits
- Stable filter conditions over temperature and life time
- Human eye like color, light, good+bad blue and proximity detection
- Signal conditioning on chip
- Sample illumination without external LED driver
- Direct register read and write with interrupt on sensor ready
Application fields
