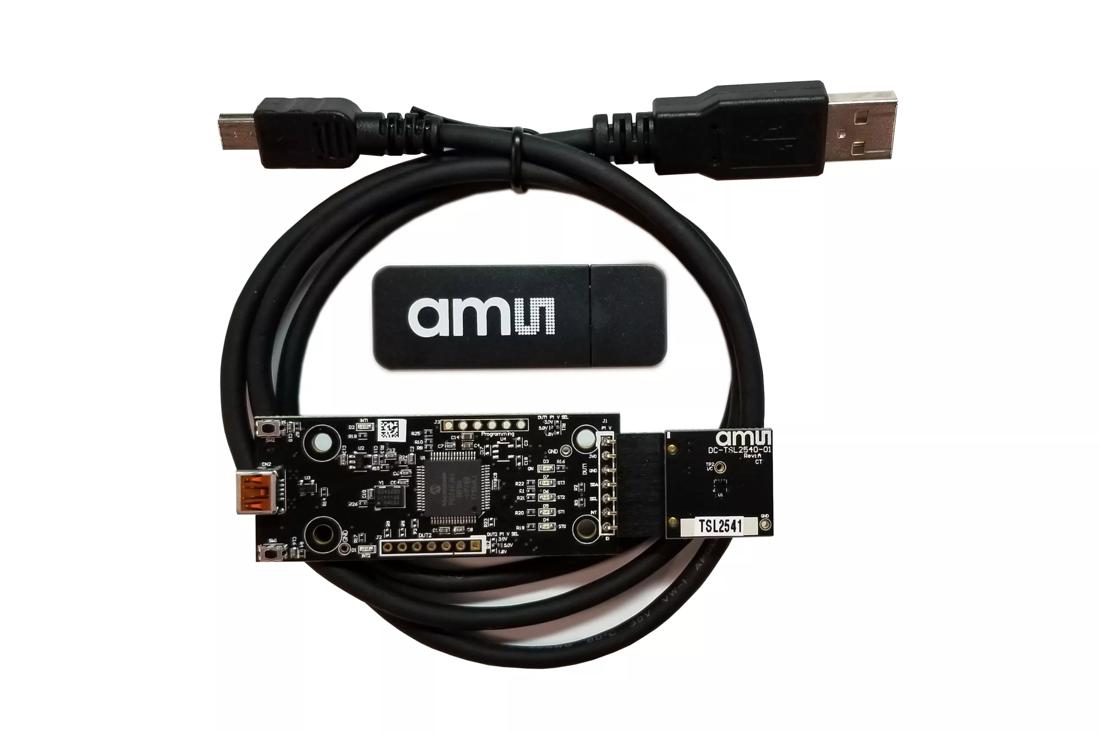

ams TSL2541_EVM_EB Evaluation kit

The TSL2541 is a very-high sensitivity light-to-digital converter that has a dark mold compound package which enables concealment behind inked glass. It approximates the human eye response to light intensity under varying lighting conditions and transforms this light intensity to a digital signal output capable through a 1.8V I²C interface. The ALS sensor features 2 output channels, a visible channel and an IR channel. The visible channel has a photodiode with a photopic Interferometric UV and IR blocking filter and the IR channel has a photodiode with an IR pass filter. Each channel has a dedicated integrating data converter which converts photodiode current into a 16-bit digital output. This digital output can be interfaced with a microprocessor where illuminance in lux is derived to accurately measure ambient light to control a displays backlight.
