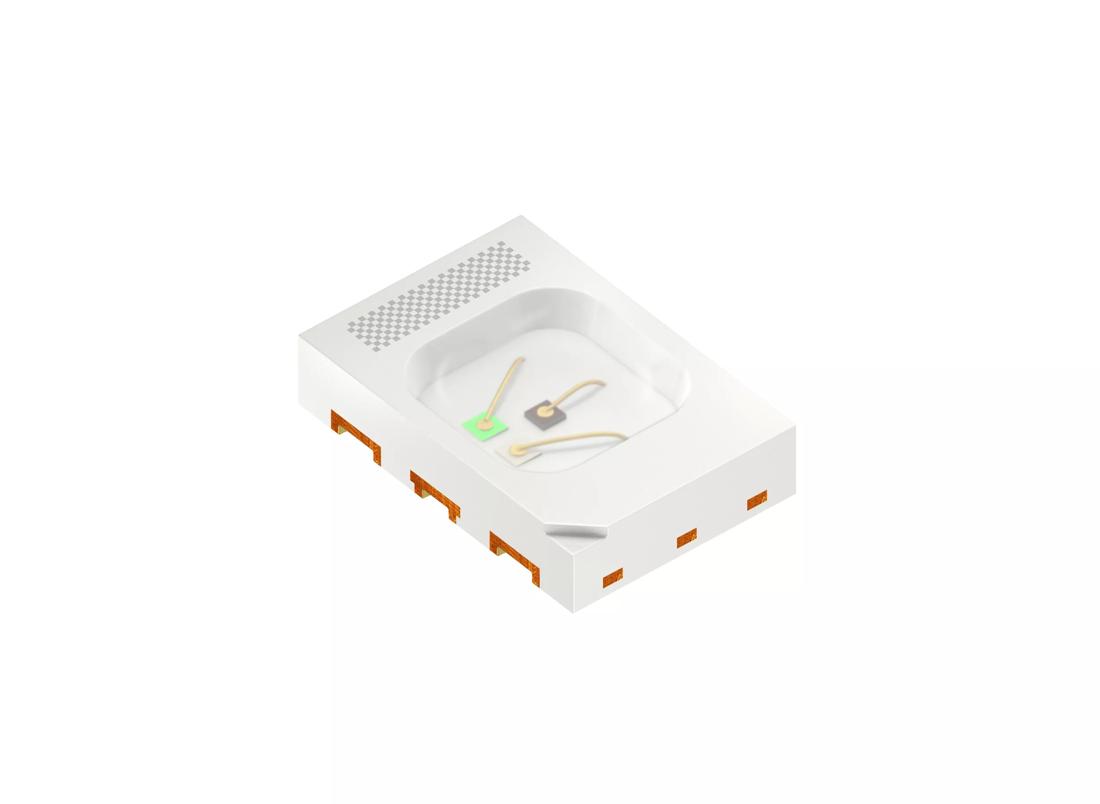

OSRAM OSIRE® E3323, KRTBDWLM31.32

×

Description

The OSIRE E3323 is designed for automotive ambient applications. With its compact size, the device offers a maximum of flexibility for various assembly situations. All measurement data of every single LED is made available at 10 and 50 mA via an imprinted data matrix code. This feature helps to reduce the optical measurement effort on customer side.

Details

Parameters

Color of emission
Red (612-630 nm)
True Green (513-545 nm)
Blue (450-480 nm)
Electrical power
0.019 W
0.026 W
0.029 W
Low
Low
Low
Brightness
ΦV
1.77 lm
IV
0.558 cd
ΦE
11.3 mW
IE
3.58 mW/sr
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Dimension
l
3.3 mm
w
2.3 mm
h
0.7 mm

Ordering codes

Product Type Description Order No. Availability
KRTBDWLM31.32-2T1V-JW+5A8A-J3+2R1T-5V Iv = 315 ... 800 mcd (IF□=□10□mA)
Iv = 1120 ... 1800 mcd (IF□=□10□mA)
Iv = 125 ... 315 mcd (IF□=□10□mA)
Q65113A4892
