Details
Features

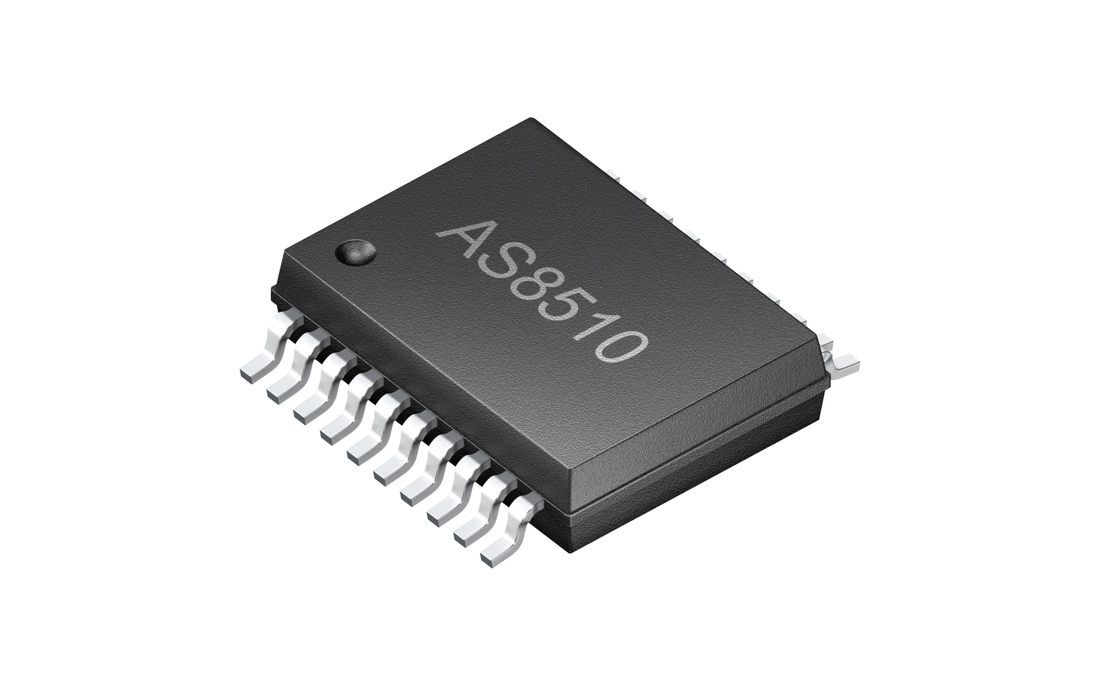

- First 16-bit dual ADC and PGA data acquisition ASSP with zero offset as a flexible sensor interface
- Offset <1 LSB
- Noise <1 LSB@1kHz, 1 Sigma
Benefits
- Highest accuracy dual ADC for signal conditioning up to 4kHz
- Flexible concept enables short time to market in evolving field of battery management
- Full AEC-Q100 conformance
Parameters
Resolution
16
bit
Automotive qualified
AEC-Q100
Current consumption
3
mA
Standby current
40 µA
Package
SSOP20
Operating ambient temperature
min.
-40
°C
max.
125
°C
Package dimension
l
7.2
mm
w
7.8
mm
h
2
mm
Supply voltage
min.
3.3
V
Function
current sensing
Ordering codes
Downloads
Datasheets
Datasheet
Technical documents
Factsheet
Environmental documents
Material declaration form
Material declaration form
Material declaration form
Material declaration form
RoHS certificate
Images
Block diagram
Software
Evaluation software
Evaluation software
Related boards, kits & accessories
ams AS8510_DEM_RB_COPPERSHUNT Demonstrator board
This Copper-Shunt based current sensor demo utilizes the AS8510 for current measurement and thermal-coefficient compensation. It is intended for a current range of ~40A operation and 60A maximum. Two measurement paths are provided. The left one uses the AS8510’s internal temperature sensor and the right one uses a fine copper meander trace to sense temperature.
ams AS8510_DEM_SN Demonstrator kit
The AS8510 Demo Kit for AS8510 data acquisition front-end IC allows easy evaluation of the AS8510 features. Its USB connector allows easy access to all the chips features via a user friendly graphical PC interface. The GUI is supplied with the evaluation board and can be used to plot measured data as well as to access all the device registers and evaluate special settings.
Key Features:
- User friendly graphical PC interface
- Easy implemenation in your own software (for example to do lab measurements in Labview) possible
ams AS8510_REF_RB_ARDUINOSHIELD Reference design board
The AS8510 Arduino Shield Reference Design is an add-on to the very popular Arduino Series of µC development boards. The reference design allows to measure current and voltage via the AS8510 A/D IC and to use the measured data in any Arduino sketch. Schematic and layout are available as download with no restrictions. Libraries to interface to the Arduino IDE as well as example code can be downloaded for easy setup of this board.
For use of this AS8510 Arduino reference design an Arduino Uno (or similar) host board is required: http://arduino.cc/en/Main/ArduinoBoardUno
ams USB-BOARD_DEM_AC Demonstrator accessory
The USB Interface Board enables communication between the Copper-Shunt Demo and PC.
The kit consists of the dual layer PCB USB Interface Board and a HDMI Type-D to Type-C Cable which is used to connect demo board.
