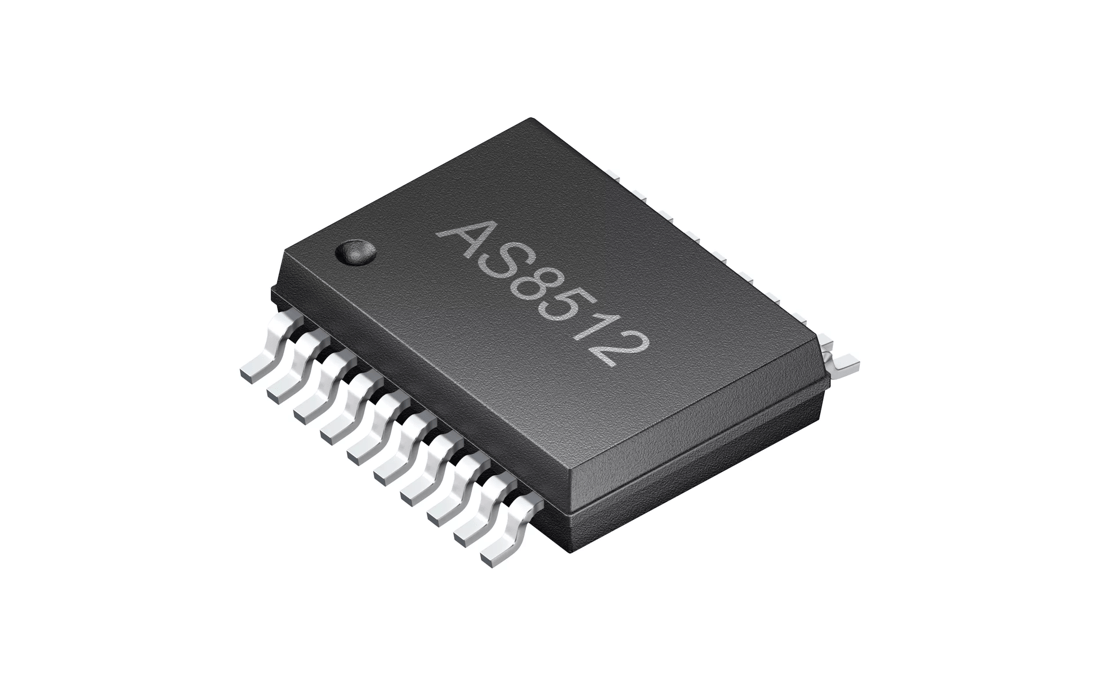

ams AS8512 Analog Front-End

New

Description

The AS8512 IVT-sensor is a data acquisition front-end IC empowering virtually offset free, low noise, 2-channel measurement of current and voltage in battery management systems. It is tailored to accurately measure wide range of current (from mA up to kA) in combination with a 100 µOhm shunt resistor connected in series with the battery rail. Through the second measurement channel it enables capture of either battery voltage synchronous with the current or to measure the analog output of an internal or external temperature sensor. It provides measurement outputs via a 4-wire SPI serial interface. With its accurate data acquisition and cost optimized capabilities the sensor is ideal for battery management systems for energy storage system (ESS).

Datasheet

Select & order

Details

Low supply voltage
Redundant measurement possibility
Flexible configuration
Unique measurement principle

3.3V supply voltage
Two high resolution 16-bit Sigma-Delta A/D converters
Programmable sampling to enable data throughput from less than 1Hz to 8kHz
Zero offset for both channels

Application fields

Industrial Home & building automation

Ordering codes

Product Type	Description	Order No.	Availability
AS8512-ZSSM	500 pcs/reel	Q65113A7218	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Mouser Buy now
AS8512-ZSSP	2000 pcs/reel	Q65113A7217	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Mouser Buy now
