Details
Features
- Contactless motion and position sensing
- Standard I²C interface
- Low power modes
- Interrupt for motion detection
Benefits
- Highest reliability and durability
- Easy to use
- Sensor for battery operated devices
- Can be used as a wake-up
Parameters
Resolution
8
bit
Interface
output
I²C
Die in package
single
Supply voltage
3.3
V
Operating ambient temperature
min.
-20
°C
max.
80
°C
Package

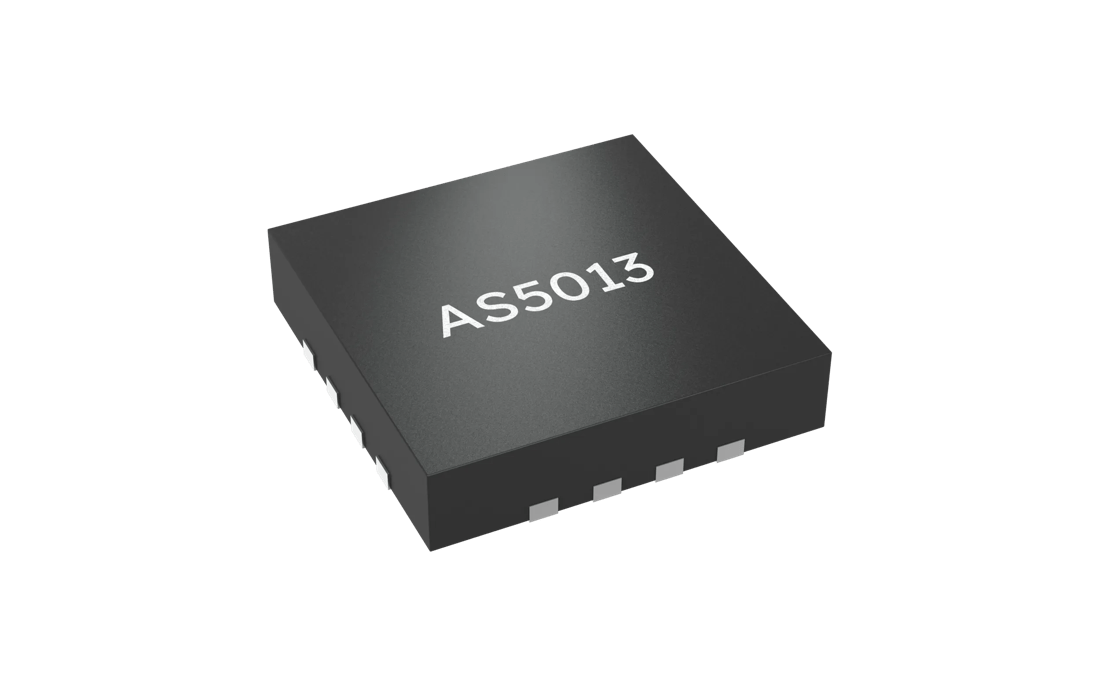

QFN16
Function
special
Sensing technology
magnetic
Application fields
Ordering information
| Product Type | Description | Ordering code | Availability |
|---|---|---|---|
| AS5013-IQFT | 16-pin QFN (4mmx4mmx0.55mm) Tape & Reel | Q65114A0699 | Full production |
Downloads
Related boards, kits & accessories
ams AS5013_QF_EVM_AB Evaluation board
The AS5013 Adapter Board allows an easy and fast evaluation of the AS5013 contactless miniature joystick. By moving the EasyPoint module on the front side of the board it is possible to check the functionality of the AS5013. To connect the AS5013 on the adapter board to a microcontroller the single row 2.54mm 8-pin header is used. The adapter board can be easily connected to an existing application.
ams AS5XXX_EVM_CB_UNIVERSAL Evaluation board
The Universal Connector Board completes the USB-8451 device (not included) and provide an evaluation tool which is easy to handle. The UCB in addition with the standard adapter board enables to do easy setups of basic application examples. This evaluation tool supports following products: AS5048A, AS5048B, AS505xA, AS5013
The National Instruments USB-8451 is a USB interface that provides standard I²C and Serial Peripheral Interface (SPI) communication for test and validation purposes. Further details on NI USB-8451 and ordering information is available on National Instruments homepage: NI USB-8451
ams USB-I-P-BOX_EVM_AC Evaluation accessory
The USB Interface & Programmer Box is an universal evaluation tool for magnetic position sensors with I2C or SPI interface. It comes with a 10-way cable to connect to a supported product on an existing board. The I2C or SPI wires are used for the communication (3.3V mode) and additionally the sensor can be powered from the USB I&P Box. By using the USB I&P Box Software, it is possible to read out the sensor data, write a configuration and to permanently program a configuration.
Hardware and Software requirements: PC with Windows 7 or later and a USB-A port
