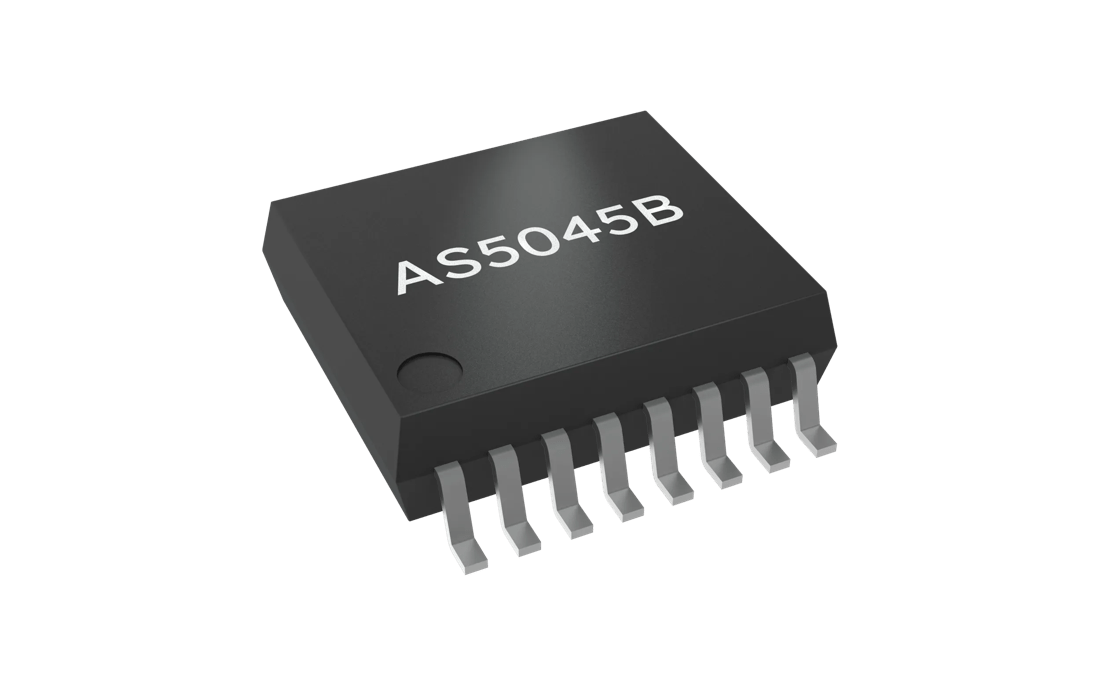

ams AS5045B Rotary Sensor

The AS5040 is a 10-bit rotary position sensor (previously known as encoder) for absolute angular measurement and with an incremental output over a full turn of 360° based on contactless magnetic sensor technology. This device fits perfectly for on-axis applications where a simple 2-pole magnet rotates above or below the sensor IC and the zero position can be programmed into the device. The absolute magnet angular position is measured with a resolution of 10 bit = 1024 positions per revolution and it is provided as a digital value on the serial interface (SSI) and on the PWM output signal.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

The AS5047D is a high-resolution rotary position sensor for fast absolute angle measurement over a full 360-degree range. This new position sensor is equipped with revolutionary integrated dynamic angle error compensation (DAEC™) with almost 0 latency and offers a robust design that suppresses the influence of any homogenous external stray magnetic field. A standard 4-wire SPI serial interface allows a host microcontroller to read 14-bit absolute angle position data from the AS5047D and to program non-volatile settings without a dedicated programmer. The resolution of the incremental ABI interface is programmable with a maximum resolution of 2000 steps / 500 pulses per revolution in decimal mode and 2048 steps / 512 pules per revolution in binary mode.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers. More information about Longevity Program

The AS5047P is a high-resolution rotary position sensor for high speed (up to 28krpm) angle measurement over a full 360-degree range. This new position sensor is equipped with revolutionary integrated dynamic angle error compensation (DAEC™) with almost 0 latency and offers a robust design that suppresses the influence of any homogenous external stray magnetic field. A standard 4-wire SPI serial interface allows a host microcontroller to read 14-bit absolute angle position data from the AS5047P and to program non-volatile settings without a dedicated programmer. Incremental movements are indicated on a set of ABI signals with a maximum resolution of 4000 steps / 1000 pulses per revolution in decimal mode and 4096 steps / 1024 pulses per revolution in binary mode. The resolution of the ABI signal is programmable and can be reduced to 100 steps per revolution, or 25 pulses per revolution.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.More information about Longevity Program

The AS5147 is a high-resolution rotary position sensor for fast absolute angle measurement over a full 360-degree range. This new position sensor is equipped with a revolutionary integrated dynamic angle error compensation (DAEC™) with almost 0 latency. The robust design of the device suppresses the influence of any homogenous external stray magnetic field. A standard 4-wire SPI serial interface allows a host microcontroller to read 14-bit absolute angle position data from the AS5147 and to program non-volatile settings without a dedicated programmer. The resolution of the ABI signal is programmable to 2048 steps / 512 pulses per revolution or 1024 steps / 256 pulses per revolution. The AS5147 has also a programmable UVW output and supports embedded self-diagnostics features.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers. More information about Longevity Program

The AS5147P is a high-resolution rotary position sensor for high speed (up to 28krpm) angle measurement over a full 360 degree range. This new position sensor is equipped with a revolutionary integrated dynamic angle error compensation (DAEC™) with almost 0 latency. The robust design of the device suppresses the influence of any homogenous external stray magnetic field. A standard 4-wire SPI serial interface allows a host microcontroller to read 14-bit absolute angle position data from the AS5147P and to program non-volatile settings without a dedicated programmer. Incremental movements are indicated on a set of ABI signals with a maximum resolution of 4096 steps / 1024 pulses per revolution. The product is defined as SEooC (Safety Element out of Context) according ISO26262 including FMEDA, safety manual and third party qualification.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers. More information about Longevity Program

The AS5147U is a high-resolution redundant rotary position sensor for fast absolute angle measurement over a full 360-degree range. This position sensor is equipped with a revolutionary integrated dynamic angle error compensation (DAEC™) with almost 0 latency at higher rotational speed. For increased signal quality at lower rotational speed, the dynamic filter system (DFS™) reduces transition noise. The robust design of the device suppresses the influence of any homogenous external stray magnetic field. A standard 4-wire SPI serial interface with a CRC protection allows a host microcontroller to read 14-bit absolute angle position data from the AS5147U and to program non-volatile settings without a dedicated programmer. Incremental movements are indicated on a set of ABI signals with a maximum resolution of 16989 steps / 4096 pulses per revolution. Brushless DC (BLDC) motors are controlled through a standard UVW commutation interface with a programmable number of pole pairs from 1 to 7. The absolute angle position is also provided as PWM-encoded output signal. The AS5147U supports embedded self-diagnostics for fulfilling up to ASIL D in safety relevant applications. The device is available in a TSSOP14 Package.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers. More information about Longevity Program

The AS5247 is a high-resolution redundant rotary position sensor for fast absolute angle measurement over a full 360-degree range. This new position sensor is equipped with a revolutionary integrated dynamic angle error compensation (DAEC™) with almost 0 latency. The robust design of the device suppresses the influence of any homogenous external stray magnetic field. A standard 4-wire SPI serial interface allows a host microcontroller to read 14-bit absolute angle position data from the AS5247 and to program non-volatile settings without a dedicated programmer. Incremental movements are indicated on a set of ABI signals with a maximum resolution of 2048 steps / 512 pulses per revolution. The resolution of the ABI signal is programmable to 1024 steps / 256 pulses per revolution. Brushless DC (BLDC) motors are controlled through a standard UVW commutation interface with a programmable number of pole pairs from 1 to 7. The absolute angle position is also provided as PWM-encoded output signal. The AS5247 supports embedded self-diagnostics including magnetic field strength too high, magnetic field strength too low or lost magnet, and other related diagnostic features. The AS5247 is available as a dual die in a compact MLF-40 7x7 package.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers. More information about Longevity Program.

The AS5247U is a high-resolution redundant rotary position sensor for fast absolute angle measurement over a full 360-degree range. This position sensor is equipped with a revolutionary integrated dynamic angle error compensation (DAEC™) with almost 0 latency at higher rotational speed. For increased signal quality at lower rotational speed, the dynamic filter system (DFS™) reduces transition noise. The robust design of the device suppresses the influence of any homogenous external stray magnetic field. A standard 4-wire SPI serial interface with a CRC protection allows a host microcontroller to read 14-bit absolute angle position data from the AS5247U and to program non-volatile settings without a dedicated programmer. Incremental movements are indicated on a set of ABI signals with a maximum resolution of 16989 steps / 4096 pulses per revolution. Brushless DC (BLDC) motors are controlled through a standard UVW commutation interface with a programmable number of pole pairs from 1 to 7. The absolute angle position is also provided as PWM-encoded output signal. The AS5247U supports embedded self-diagnostics for fulfilling up to ASIL D in safety relevant applications. The device is using the ams stacked die technology in a TQFP-32 (7x7) package.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers. More information about Longevity Program.

The AS5115 is a contactless rotary position sensor for accurate angular measurement over a full turn of 360° and over an extended ambient temperature of -40°C to +150°C. Based on an integrated Hall element array the angular position of a simple two-pole magnet is translated into analog output voltages. The angle information is provided by means of buffered sine and consine voltages via a SSI Interface.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

The AS5130 is a contactless magnetic rotary position sensor (previously known as encoder) for accurate angular measurement over a full turn of 360°and over an extended ambient temperature of -40°C to +125°C. . The absolute angle measurement provides instant indication of the magnet’s angular position with a resolution of 8 bit = 256 positions per revolution via a serial bit stream and as a PWM signal. The AS5130 can be operated in pulsed mode (Vsupply=off) allowing very low power consumption during polling of the rotary position of the magnet.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

The AS5132 is a contactless magnetic rotary position sensor for accurate angular measurement over a full turn of 360 degrees. The absolute angle measurement provides instant indication of the magnet’s angular position with a resolution of 8.5 bit = 360 positions per revolution via a serial output over the interface and as a pulse width modulated (PWM) signal. An additional U,V,W output can be used for a block commutation for a brushless DC motor. To improve the torque over speed, a pre-commutation is possible.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

The AS5134 is a contactless magnetic rotary position sensor for accurate angular measurement over a full turn of 360 degrees and over an extended ambient temperature of -40°C to +140°C. The absolute angle measurement provides instant indication of the magnet’s angular position with a resolution of 8.5 bit = 360 positions per revolution via a serial output over the interface and as a pulse width modulated (PWM) signal.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

The AS5145A is a contactless magnetic rotary position sensor for accurate angular measurement over a full turn of 360° and over an extended ambient temperature range of -40°C to 150°C. The absolute angle measurement provides instant indication of the magnet’s angular position with a resolution of 0.0879° = 4096 positions per revolution via a serial bit stream and as a PWM signal. The incremental output (=ABI-interface) is preprogrammed for 10 bit = 1024 positions.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

The AS5145B is a contactless magnetic rotary position sensor for accurate angular measurement over a full turn of 360° and over an extended ambient temperature range of -40°C to 150°C. The absolute angle measurement provides instant indication of the magnet’s angular position with a resolution of 0.0879° = 4096 positions per revolution via a serial bit stream and as a PWM signal. The incremental output (=ABI-interface) is preprogrammed for 12 bit = 4096 positions.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

The AS5145H is a contactless magnetic rotary position sensor for accurate angular measurement over a full turn of 360° and over an extended ambient temperature range of -40°C to 150°C. The absolute angle measurement provides instant indication of the magnet’s angular position with a resolution of 0.0879° = 4096 positions per revolution via a serial bit stream and as a PWM signal.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

The AS5215 is a redundant, contactless rotary position sensor for accurate angular measurement over a full turn of 360° and over an extended ambient temperature of -40°C to +150°C. Based on an integrated Hall element array the angular position of a simple two-pole magnet is translated into analog output voltages. The angle information is provided by means of buffered sine and consine voltages via a SSI interface.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

The AS5245 is a redundant, contactless magnetic rotary position sensor for accurate angular measurement over a full turn of 360° and over an extended ambient temperature range of -40°C to 150°C. The absolute angle measurement provides instant indication of the magnet’s angular position with a resolution of 0.0879° = 4096 positions per revolution via a serial bit stream and as a PWM signal.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

The AS5140H is a contactless magnetic rotary position sensor for accurate angular measurement over a full turn of 360° and over an extended ambient temperature range of -40°C to 150°C. The absolute angle measurement provides instant indication of the magnet’s angular position with a resolution of 0.35° = 1024 positions per revolution via a serial bit stream and as a PWM signal.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.
