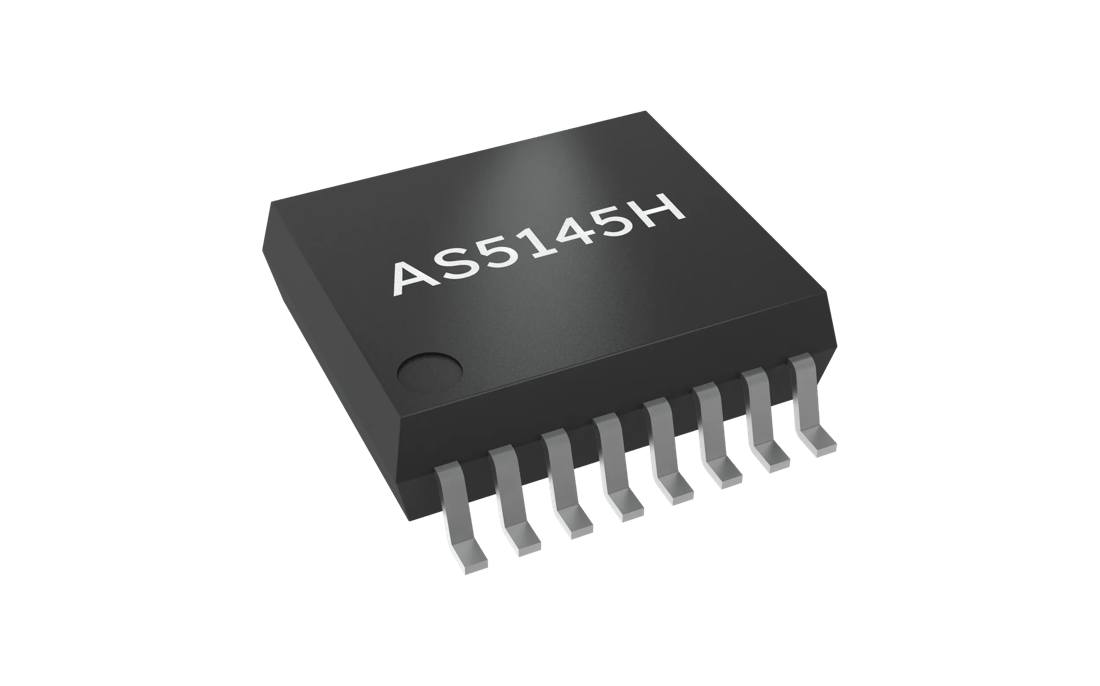

ams AS5145H Rotary Sensor

Description

The AS5145H is a contactless magnetic rotary position sensor for accurate angular measurement over a full turn of 360° and over an extended ambient temperature range of -40°C to 150°C. The absolute angle measurement provides instant indication of the magnet’s angular position with a resolution of 0.0879° = 4096 positions per revolution via a serial bit stream and as a PWM signal.

With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

Details

Features

  • Failure detection mode for magnet placement monitoring and loss of power supply
  • Serial read-out of multiple interconnected AS5145 devices using Daisy Chain mode
  • Detects movement of magnet in Z-axis (Red-Yellow-Green indicator)
  • Contactless high resolution rotational position encoding over a full turn of 360 degrees
  • Simple user-programmable zero position and settings
  • Serial communication interface (SSI)
    10-bit pulse width modulated (PWM) output
    Quadrature A/B and Index output signal
  • Rational speeds up to 30,000 rpm

Benefits

  • Highest reliability and durability
  • Simple programming
  • Multiple interfaces
  • Ideal for motor applications
  • Failure diagnostics
  • Easy setup
  • Great flexibility at a huge application area

Parameters

Die in package
single
Operating ambient temperature
min.
-40 °C
max.
150 °C
Package
SSOP 16
Automotive qualified
AEC-Q100
Function
angle sensing
