Details
Features
- 12-bit resolution @90° minimum arc
- Low output noise, low inherent INL
- Magnetic stray field immunity
- Functional safety, diagnostics, dual redundant chip version
- AEC-Q100 Grade 0 qualified
Benefits
- Resolves small angular excursion with high accuracy
- Accurate angle measurement
- Higher durability and lower system costs (no shielding needed)
- Enabler for safety critical applications
- Suitable for automotive applications
Parameters
Die in package
dual
Operating ambient temperature
min.
-40
°C
max.
150
°C

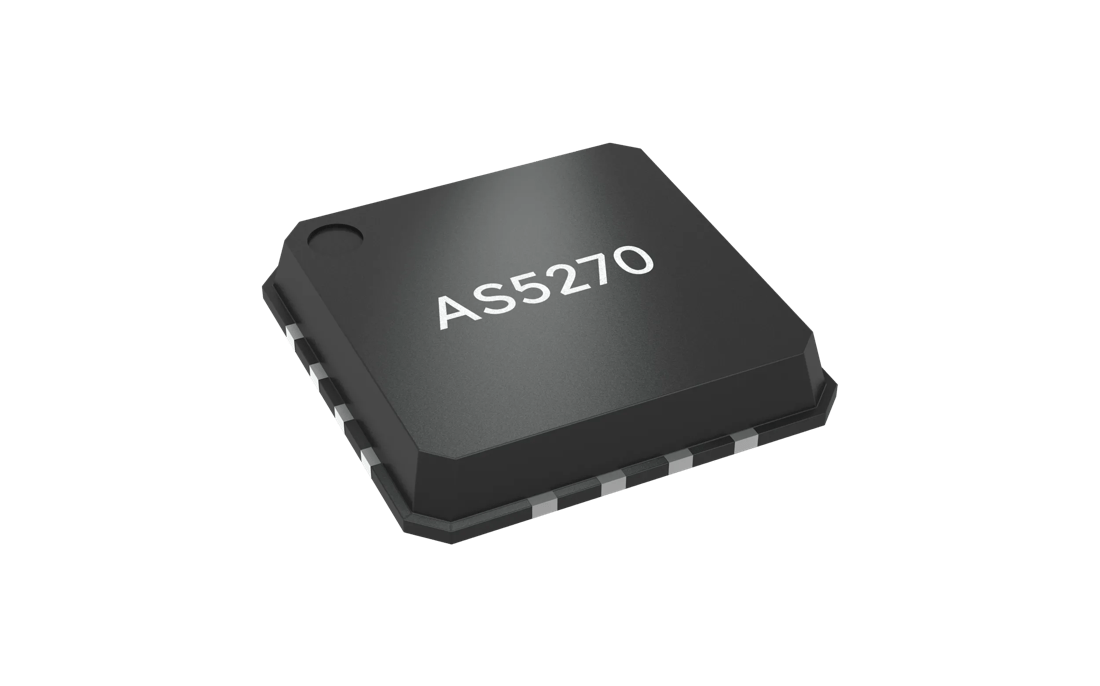

Package
MLF-16
Automotive qualified
AEC-Q100
Function
angle sensing
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| AS5270A-HMFM | MLF-16 7” Tape & Reel in dry pack 1000 pcs/reel | Q65114A0829 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
|
| AS5270A-HMFT | MLF-16 13” Tape & Reel in dry pack 4000 pcs/reel | Q65114A0830 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
| AS5270B-HMFM | MLF-16 7” Tape & Reel in dry pack 1000 pcs/reel | Q65114A0832 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
|
| AS5270B-HMFT | MLF-16 13” Tape & Reel in dry pack 4000 pcs/reel | Q65114A0831 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
Downloads
Datasheets
Datasheet
Application note
Product related
Product related
Technical documents
Factsheet
Technical note
Environmental documents
RoHS certificate
Lifecycle documents
Product change notification (PCN)
Images
Block diagram
Related boards, kits & accessories
ams AS5XXX-RMH05_EVM_AC Evaluation accessory
This Rotary Magnetic Holder (RMH) is designed to use it on our magnetic rotary position sensor adapter boards for easy evaluation. It allows fast prototyping and quick measurements during development. For more details please download the document.
ams AS5270_MF_EVM_SB Evaluation board
The AS5270-SO_EK_SB Socket Board is used for quick programming the AS5270A and AS5270B magnetic rotary position sensors without soldering due to its ZIF socket.
This board can be used in combination with the AS5xxx-EK-USB-PB UART Programming Board and the provided LabVIEW evaluation software.
ams AS5270_MF_EVM_AB Evaluation board
"The AS5270 Adapter Board allows you an easy-to-use evaluation of the basic function of the AS5270 magnetic position sensor in your own system design.
This small factor board includes the position sensor with its necessary external components. All relevant signals are available on a 2.54mm header footprint and can be easily wired to your own application."
