ams AS5116 Position Sensor Sin/Cos Output

The AS5116-SO_EK_SB socket board is used for quick programming of the AS5116 magnetic rotary position sensors without soldering due to its ZIF socket. This board is used in combination with the USB I&P Box or the SD4Y production programmer. The PCB offers 2 connecting options: The 5-pin dual-row connector on the left side for connecting to the USB I&P Box and the 10-pin dual-row connector on the right side for connecting to the SD4Y Production Programmer. Furthermore, 8-pin header on top gives access to analog signals and GND signals. A ZIF Open-Top-Socket for SOIC8 packages is mounted in the middle. Pin 1 of the IC is indicated by a small dot on the left bottom corner of the socket or by the label on the PCB. All passive components needed for proper operation are included on the PCB. Only a power supply mode of 5 V is possible.

The AS5116 Adapter Board is a small PCB allowing simple and quick testing or evaluation of the AS5116 magnetic position sensor without the need to build a test fixture or design an own PCB. The PCB can be connected either to an external microcontroller or to the USB I&P Box.The connector, 2x5 pin header (not populated), is included to this kit and is required for power supply as well as UART and analog interface.

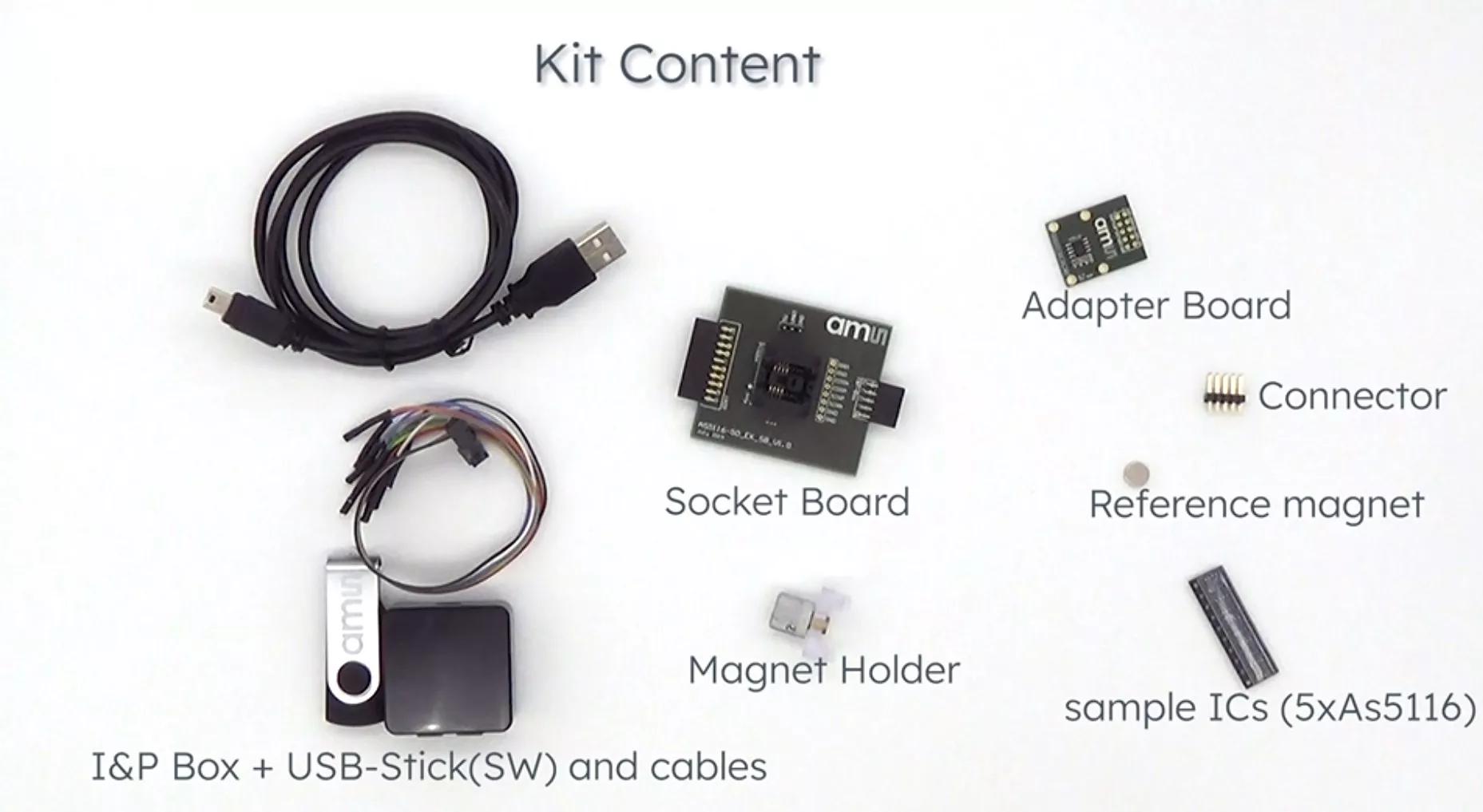

The AS5116 Evaluation Kit allows an easy-to-use evaluation on AS5116. The evaluation kit includes the I&PBox (including USB-Stick and cables), AS5116 Adapter Board (including magnet sample), Socket Board, Magnet Holder and 5 AS5516 samples.
