ams AS5115_EVM_PB Evaluation board

Not for new design
Not for new design

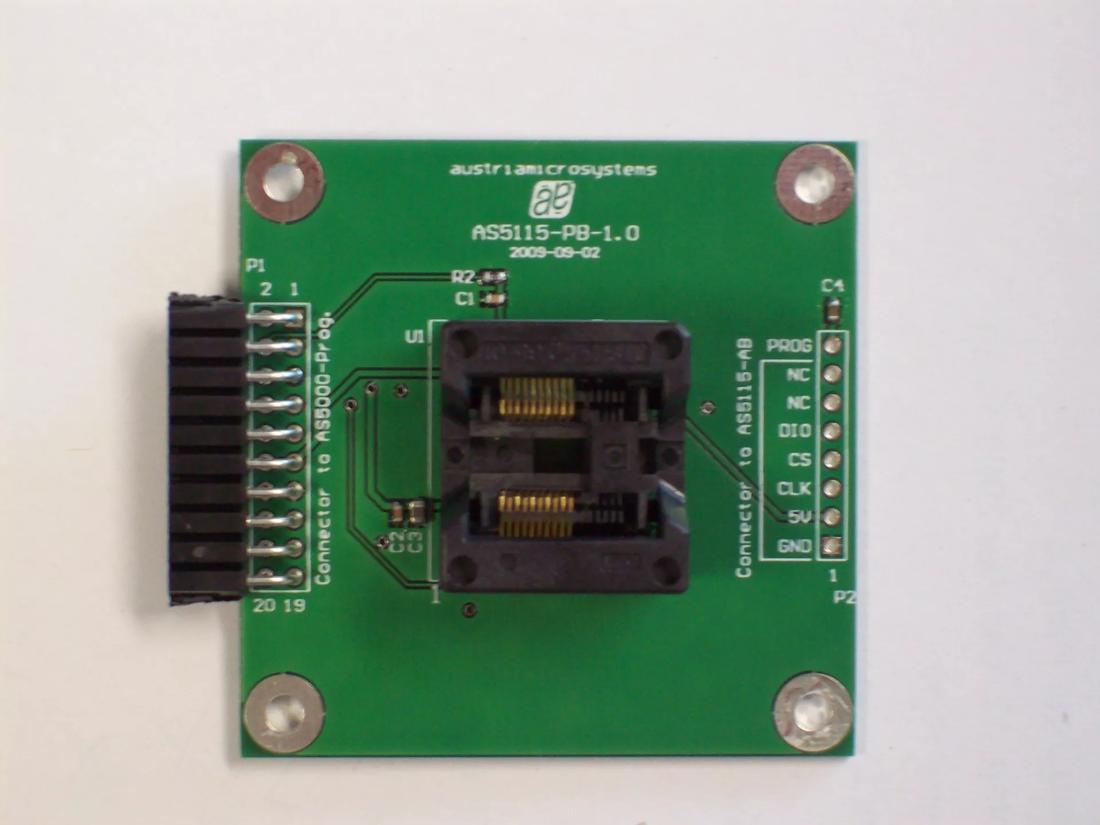

The AS5115-PB programming board is used for quick programming the AS5115 automotive position sensor without soldering due to its ZIF socket. This board must be used in combination with the SD4Y-Programmer, which provides the chip with the adequate OTP programming commands.

Please note that AS5115 is not recommended for new designs.
