ams AS5145B_EVM_MB_STEPPERMOTOR Evaluation board

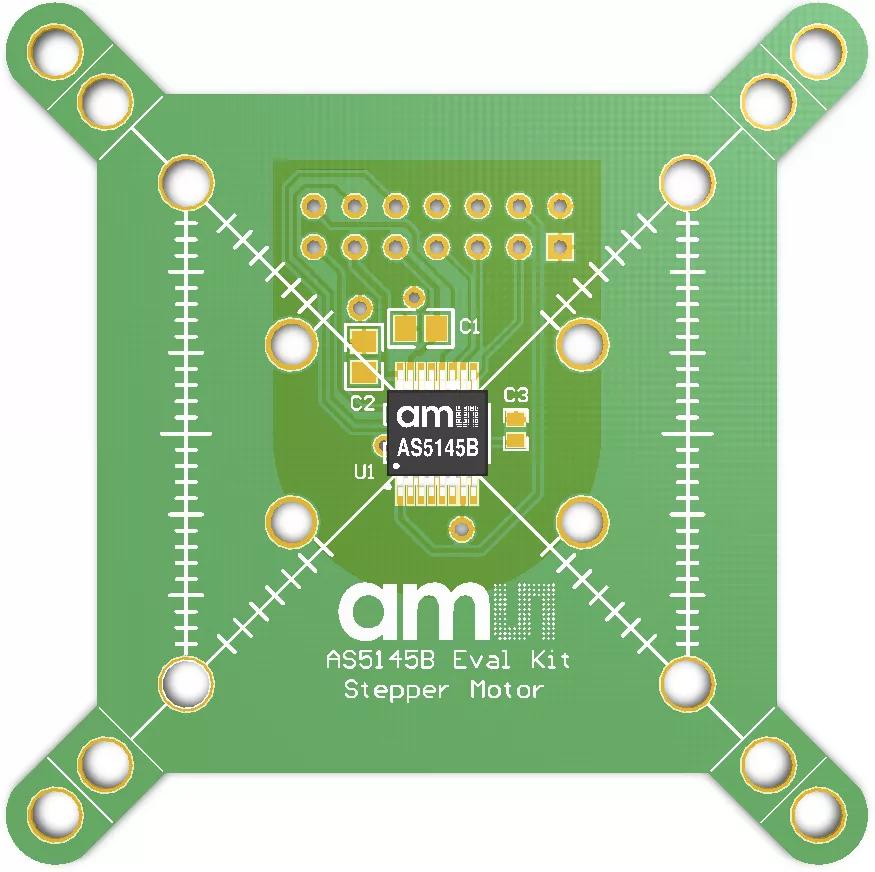

The AS5145B Motor Board is designed to adapt standard size stepper motors with a contactless rotary position sensor for easy and fast evaluation of the IC in the application. The Motor Board includes the PCB with soldered IC, 4 magnet holders with different shaft diameters and the allen key. The 4 distance bolts and the motor are not included. On the connector you get the ABI quadrature, the SSI Synchronous Serial Interface and the PWM pulse width modulation output signals.


User guides

User guide
