ams AS6204_EVM_AB Evaluation board

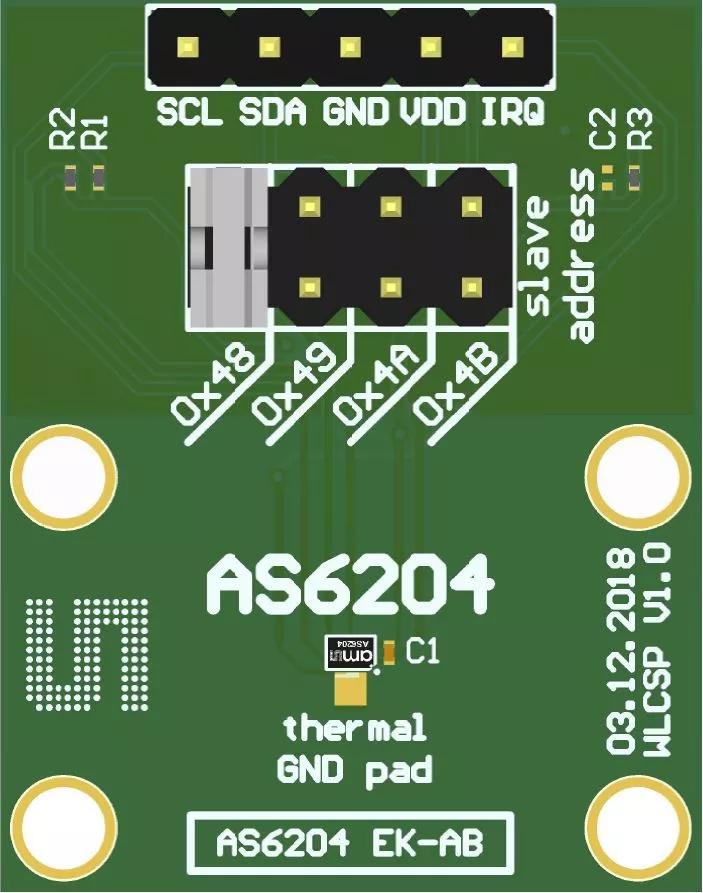

The AS6204 adapterboard is a simple PCB to enable an easy evaluation of the ams digital temperature sensor. The board features an AS6204 digital temperature sensor, a decoupling capacitor and pull-up resistors. The included jumper is an easy way of setting the four I²C addresses of the sensor. A 5x1 pin header with a 2.54mm pitch offers all necessary interfaces to connect the adapterboard to your application processor.

Ordering codes

Product Type Description Order No. Availability


User guides

User guide
