ams AS8510_DEM_RB_COPPERSHUNT Demonstrator board

ams AS8510_DEM_RB_COPPERSHUNT Demonstrator board
×

Description

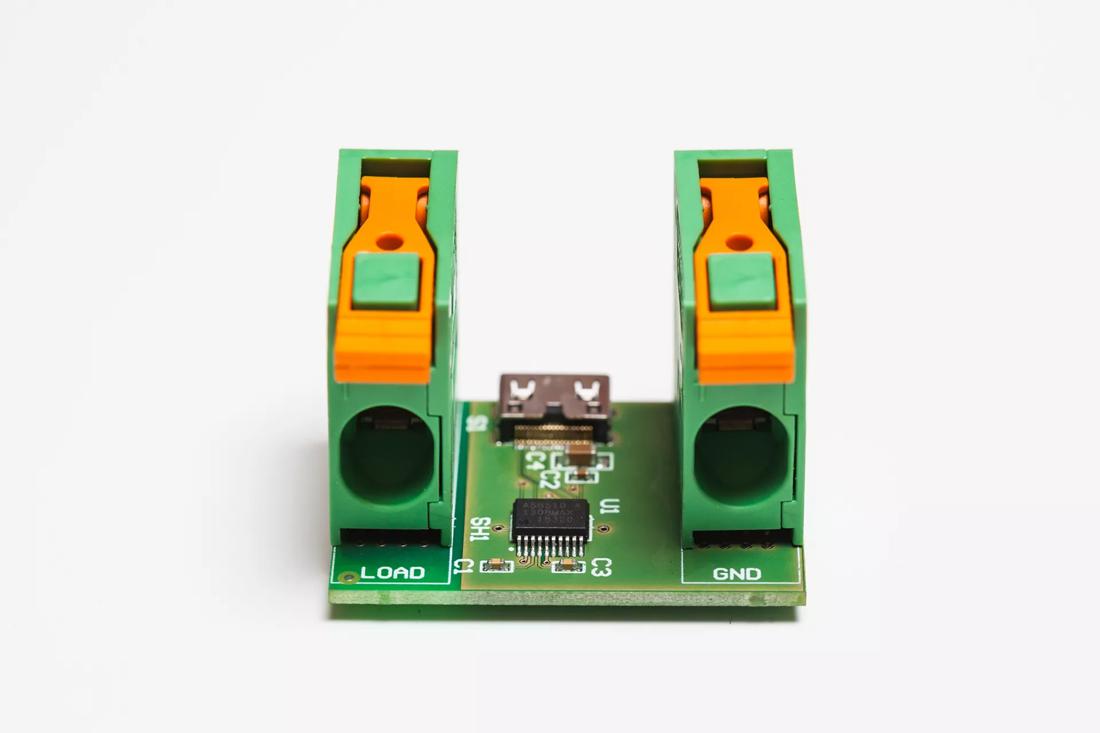

This Copper-Shunt based current sensor demo utilizes the AS8510 for current measurement and thermal-coefficient compensation. It is intended for a current range of ~40A operation and 60A maximum. Two measurement paths are provided. The left one uses the AS8510’s internal temperature sensor and the right one uses a fine copper meander trace to sense temperature.
