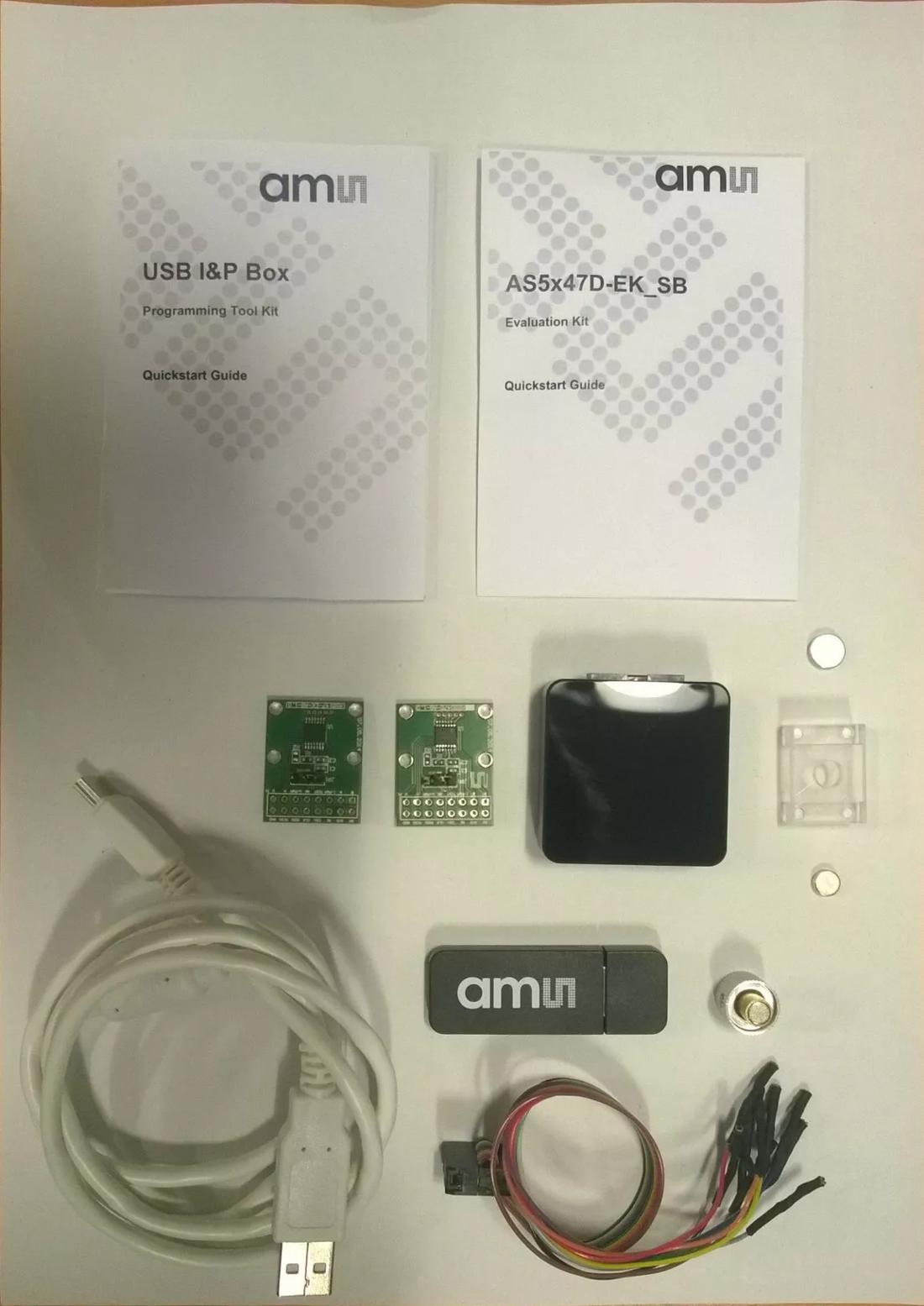

ams AS5X47D_TO_EVM_SN Evaluation kit
×
Downloads
Images
Related boards, kits & accessories
ams SD4Y-PROGRAMMER_EVM_AC Evaluation accessory
The SD4Y Programmer is an in-system programming tool which is applicable for production environment. The SD4Y programmer supports: digital writing and reading; OTP programming and analog read back for the OTP verification. Additional the SD4Y programmer can use the AMS programming boards.
The GUI and the Labview source code are available. Additional code samples for C; C++ and C# are available.
Download latest software (UProg_SW_package_2v0.zip,
264MB)
ams USB-I-P-BOX_EVM_AC Evaluation accessory
The USB Interface & Programmer Box is an universal evaluation tool for magnetic position sensors with I2C or SPI interface. It comes with a 10-way cable to connect to a supported product on an existing board. The I2C or SPI wires are used for the communication (3.3V mode) and additionally the sensor can be powered from the USB I&P Box. By using the USB I&P Box Software, it is possible to read out the sensor data, write a configuration and to permanently program a configuration.
Hardware and Software requirements: PC with Windows 7 or later and a USB-A port
Related Products
ams AS5047D High Speed Position Sensor
The AS5047D is a high-resolution rotary position sensor for fast absolute angle measurement over a full 360-degree range. This new position sensor is equipped with revolutionary integrated dynamic angle error compensation (DAEC™) with almost 0 latency and offers a robust design that suppresses the influence of any homogenous external stray magnetic field. A standard 4-wire SPI serial interface allows a host microcontroller to read 14-bit absolute angle position data from the AS5047D and to program non-volatile settings without a dedicated programmer. The resolution of the incremental ABI interface is programmable with a maximum resolution of 2000 steps / 500 pulses per revolution in decimal mode and 2048 steps / 512 pules per revolution in binary mode.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.
ams AS5147 Rotary Sensor
The AS5147 is a high-resolution rotary position sensor for fast absolute angle measurement over a full 360-degree range. This new position sensor is equipped with a revolutionary integrated dynamic angle error compensation (DAEC™) with almost 0 latency. The robust design of the device suppresses the influence of any homogenous external stray magnetic field. A standard 4-wire SPI serial interface allows a host microcontroller to read 14-bit absolute angle position data from the AS5147 and to program non-volatile settings without a dedicated programmer. The resolution of the ABI signal is programmable to 2048 steps / 512 pulses per revolution or 1024 steps / 256 pulses per revolution. The AS5147 has also a programmable UVW output and supports embedded self-diagnostics features.With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.
