Details
Features
- DAEC™ dynamic angle error compensation
- 14-bit core resolution
- ABI programmable decimal and binary pulse-count (500, 400, 300, 200, 100, 50, 25, 8, 512, 256 ppr)
- Zero position, configuration programmable
- Independent output interfaces: SPI, ABI, UVW, PWM
- Immune to external stray field
Benefits
- Easy to use – saving costs on DSP
- Good resolution for motor and position control
- Simple optical encoder replacement
- No programmer needed (via SPI command)
- Versatile choice of the interface
- Lower system costs (no shielding)
Parameters
Resolution
14
bit
11
bit
Interface
output
PWM
ABI
UVW
SPI
Rotation speed
max.
14500
rpm
Die in package
single
Supply voltage
3.3
V
Operating ambient temperature
min.
-40
°C
max.
125
°C

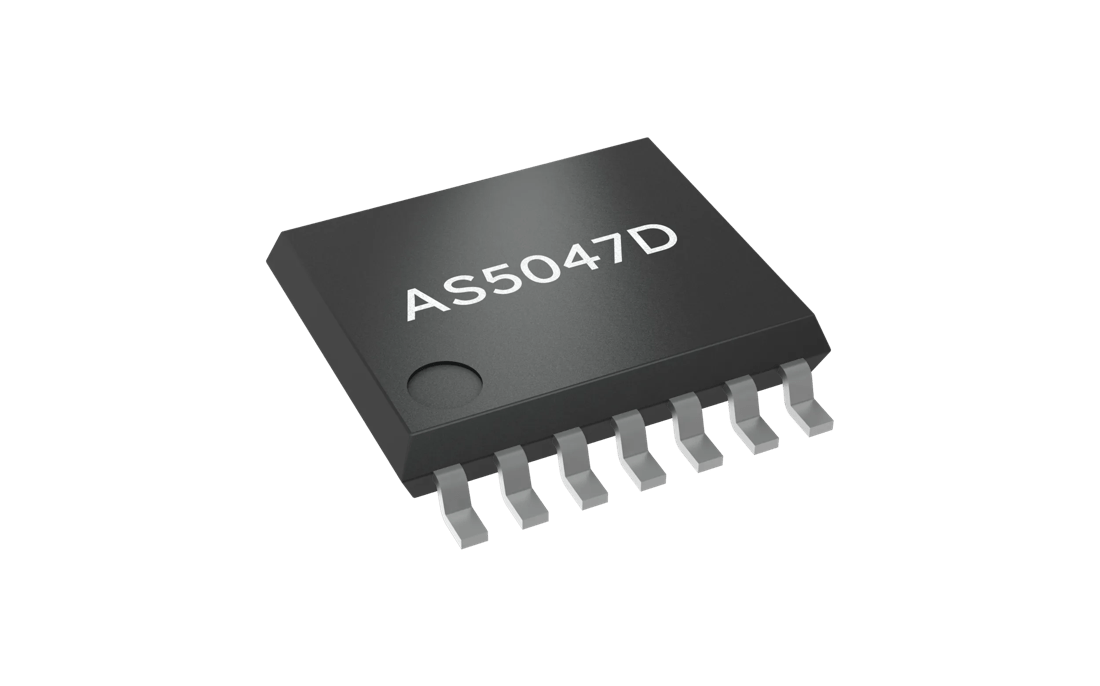

Package
TSSOP14
Accuracy typ.
0.5
°
Function
on-axis angle position sensing
Sensing technology
magnetic
