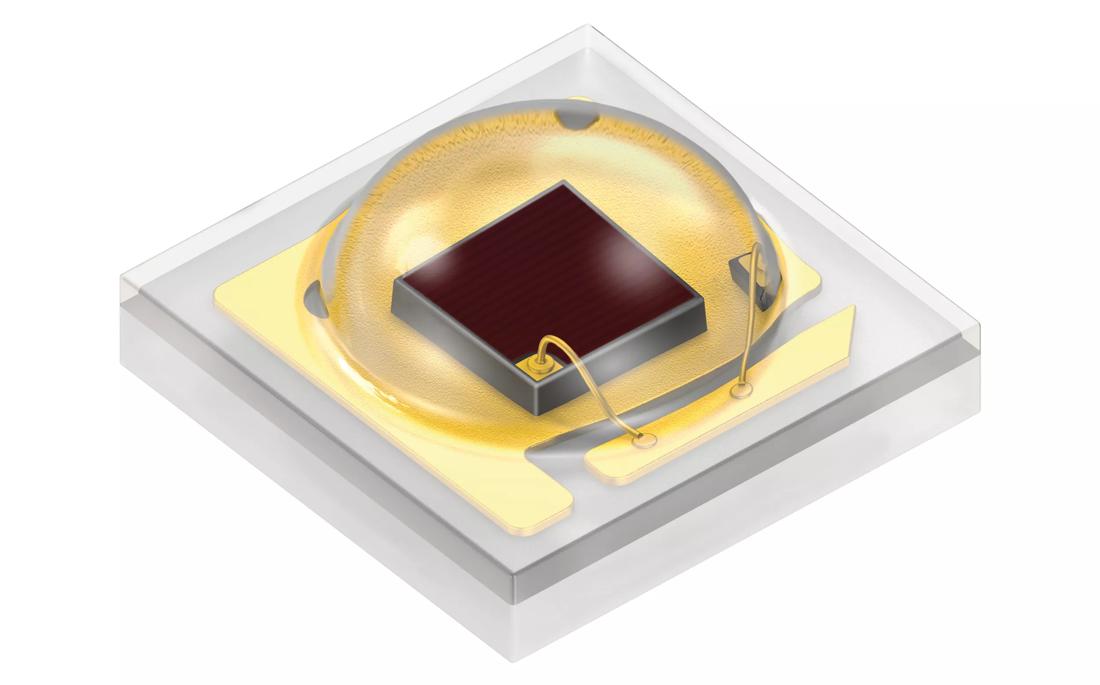

OSRAM OSLONĀ® SSL 80, LH CP7P

OSRAM OSLONĀ® SSL 80, LH CP7P
Discontinued
Ɨ
Discontinued

Description

This ultra-compact 1 W class LED provides a wide radiation pattern allowing perfect interaction and various designs including color mixing LED clusters. Its low thermal resistance allows this device to be highly efficient even at high driving currents. Applications demanding long lifetimes are perfectly addressed with this highly reliable LED.
Datasheet
LH CP7P
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Hyper Red (635-666 nm)
Electrical power
0.74 W
High
Brightness
Ī¦V
20 lm
IV
11.2 cd
Ī¦E
378 mW
IE
211 mW/sr
Beam angle
āˆ¢
80 Ā°
Operating temperature
Top min.
-40 Ā°C
Top max.
120 Ā°C

Ordering codes

Product Type Description Order No. Availability
LH CP7P-2T3T-1 = 315.00 ... 400.00 mW (IF = 350 mA) Q65111A2061
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
LH CP7P-3T4T-1 = 355.00 ... 450.00 mW (IF = 350 mA) Q65111A2655
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
