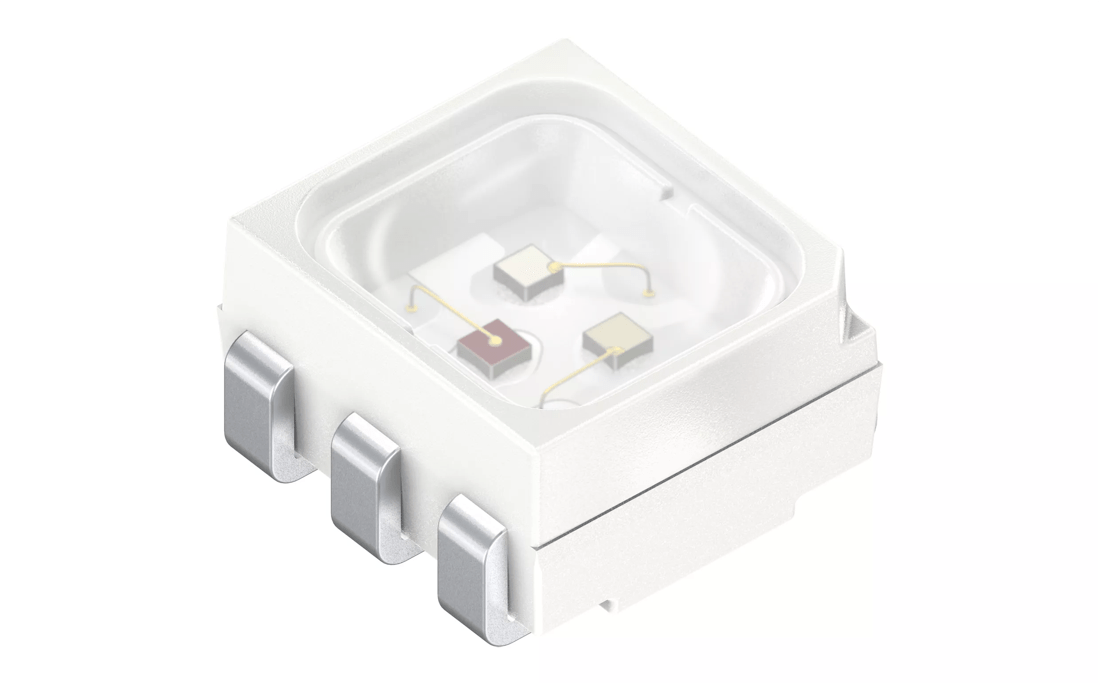

OSRAM OSIRE® E3635, LRTBGVSR

Name: OSRAM OSIRE® E3635, LRTBGVSR
Brand: ams-OSRAM AG

Description

The OSIRE E3635 is especially designed for automotive applications and RGB displays. The 6-lead technology offers an additive mixture of color stimuli by independent driving of each chip. The white package guarantees high brightness.

Datasheet

Select & order

Details

Parameters

Color of emission

Red (612-630 nm)

True Green (513-545 nm)

Blue (450-480 nm)

Electrical power

0.041 W

0.052 W

0.057 W

Low

Brightness

Φ_V

1.31 lm

I_V

0.467 cd

Φ_E

23.3 mW

I_E

8.27 mW/sr

Beam angle

∢

120 °

Operating temperature

T_op min.

-40 °C

T_op max.

110 °C

Dimension

3.4 mm

3.3 mm

1.8 mm

Application fields

Automotive & mobility Functional illumination Ambient lighting Automotive Aftermarket

Ordering codes

Product Type	Description	Order No.	Availability
LRTBGVSR-4U4V-JW+8A8B-D8-3S4U-7Z	● I_v = 630 ... 1120 mcd (I_F□=□20□mA) ● I_v = 1590 ... 2800 mcd (I_F□=□20□mA) ● I_v = 224 ... 710 mcd (I_F□=□20□mA)	Q65113A3998	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Digi-Key Buy now Mouser Buy now
