Details
Features

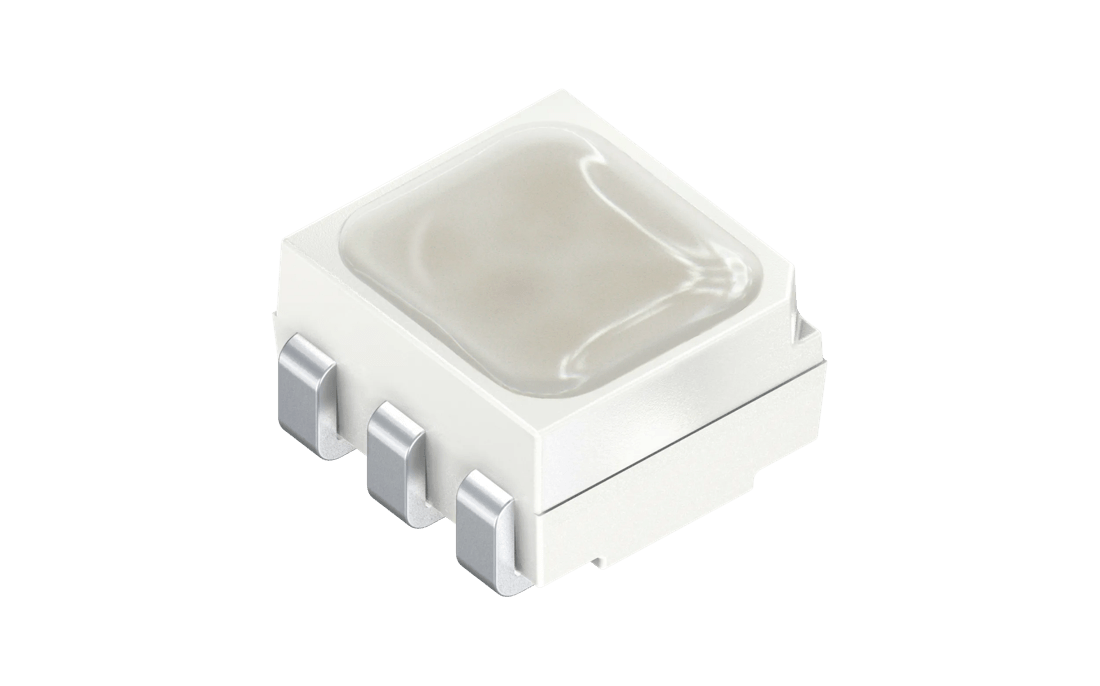

- Three-color RGB top emitter
- Individually addressable LED chips
- Superior performance at 20 mA R: 630 - 1120 mcd G: 1590 - 2800 mcd B: 224 - 710 mcd
- Qualifications: AEC-Q102
- Corrosion Robustness Class 3B
Benefits
- Perfectly suitable for round lightguideapplications due to delta chip orientation
- Maximum of flexibility in terms of color point
- Free driver selection and interconnection
- High color accuracy
- Reduced calibration effort on customer sidedue to narrow brightness binning
- Same binning scheme as other OSIRE family members
Parameters
Color of emission
Red (612-630 nm)
True Green (513-545 nm)
Blue (450-480 nm)
Electrical power
0.043
W
0.053
W
0.057
W
Low
Low
Low
Brightness
ΦV
2.53
lm
6.31
lm
1.34
lm
IV
0.875
cd
2.2
cd
0.467
cd
ΦE
14.3
mW
11.7
mW
29.2
mW
IE
4.95
mW/sr
4.08
mW/sr
10.2
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
110
°C
Dimension
l
3.4
mm
w
3.3
mm
h
1.8
mm
Device qualification
AEC-Q102
Application fields
Ordering information
| Product Type | Description | Ordering code | Availability |
|---|---|---|---|
| LRTBGWSR-4U4V-JW+8A8B-D8-3S4U-7Z |
|
Q65113A7820 | Full production |
