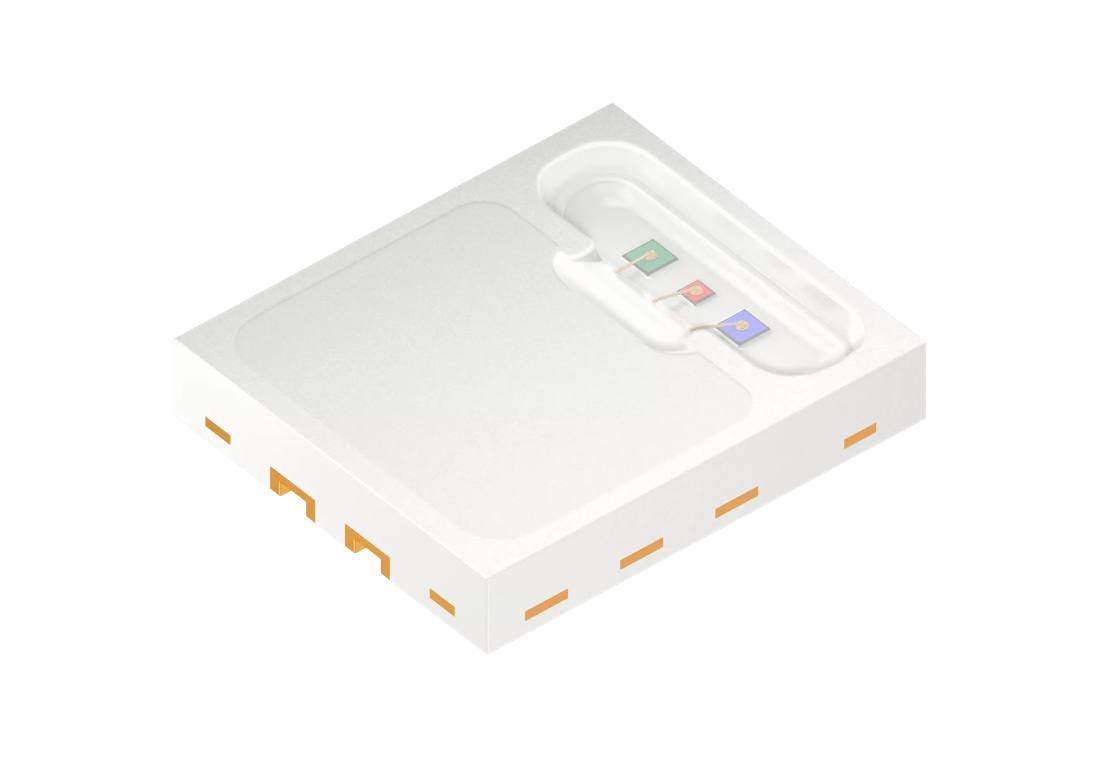

OSRAM OSIREĀ® E3731i, KRTBI D2LM31.31

OSRAM OSIREĀ® E3731i, KRTBI D2LM31.31
Ɨ

Description

This device is especially designed for automotive interior applications requesting high dynamic RGB lighting scenarios. This device is an intelligent RGB device, incorporating besides R/G/B LEDs an IC from ams OSRAM. This embedded IC integrates the drivers for the three R/G/B LEDs. The embedded IC includes the optical measurement data of the three R/G/B LEDs as well. An external micro controller can address and control each device in a daisy chain architecture via an open system protocol. The open protocol allows the micro controller to read back these data and to run any color algorithm. It also allows to read back a temperature value to optimize this color algorithm.
Datasheet
KRTBI D2LM31.31
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
True Green (513-545 nm)
Blue (450-480 nm)
Brightness
Ī¦V
4.34 lm
IV
1.51 cd
Ī¦E
7.99 mW
IE
2.77 mW/sr
Beam angle
āˆ¢
120 Ā°
Operating temperature
Top min.
-40 Ā°C
Top max.
110 Ā°C
Dimension
l
3.7 mm
w
3.15 mm
h
0.65 mm

Ordering codes

Product Type Description Order No. Availability
KRTBID2LM31.31-1R-JW+1G-J3+1B-5V ā— Iv = 320 ... 900 mcd (IFā–”=ā–”10ā–”mA)
ā— Iv = 1000 ... 2010 mcd (IFā–”=ā–”10ā–”mA)
ā— Iv = 125 ... 355 mcd (IFā–”=ā–”10ā–”mA) 		Q65113A6250
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
KRTBID2LM31.31-C5D7-JW+V9A5-J3+R5S7-5V ā— Iv = 320 ... 900 mcd (IFā–”=ā–”10ā–”mA)
ā— Iv = 1000 ... 2010 mcd (IFā–”=ā–”10ā–”mA)
ā— Iv = 125 ... 355 mcd (IFā–”=ā–”10ā–”mA) 		Q65113A6249
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Mouser
Buy now
