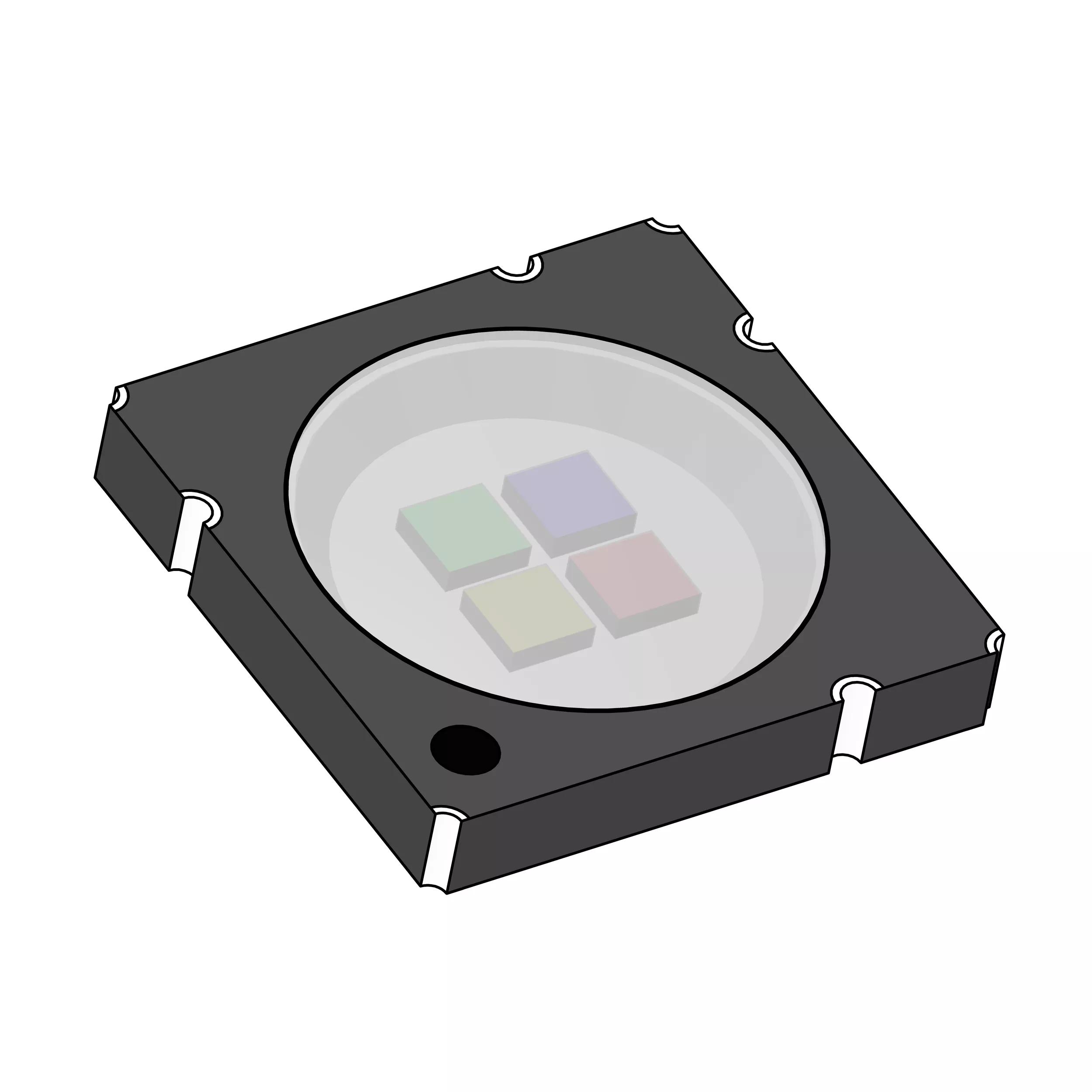

OSRAM LED ENGIN LuxiGen®, LZ4-01MWCA

OSRAM LED ENGIN LuxiGen®, LZ4-01MWCA
×

Description

Industry's most robust high power ceramic package with silicone flat top for high performance over life.
Datasheet
LZ4-01MWCA
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
Red (612-630 nm)
True Green (513-545 nm)
Blue (450-480 nm)
White
Electrical power
2.3 W
2.9 W
3.0 W
3.6 W
High
High
High
High
Brightness
ΦV
200 lm
Beam angle
∢
110 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
7.0 mm
w
7.0 mm
h
1.3 mm

Ordering codes

Product Type Description Order No. Availability
LZ4-01MWCA-0000_G2 ● ΦV = 105 ... 160 lm (IF□=□1000□mA)
● ΦV = 160 ... 280 lm (IF□=□1000□mA)
● ΦE = 1.0 ... 1.5 W (IF□=□1000□mA)
● ΦV = 140 ... 225 lm (IF□=□1000□mA) 		Q65113A6755
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
