OSRAM DURIS® E 2835, GW JTLPS1.CM

Name: OSRAM DURIS® E 2835, GW JTLPS1.CM
Brand: ams-OSRAM AG

Product features

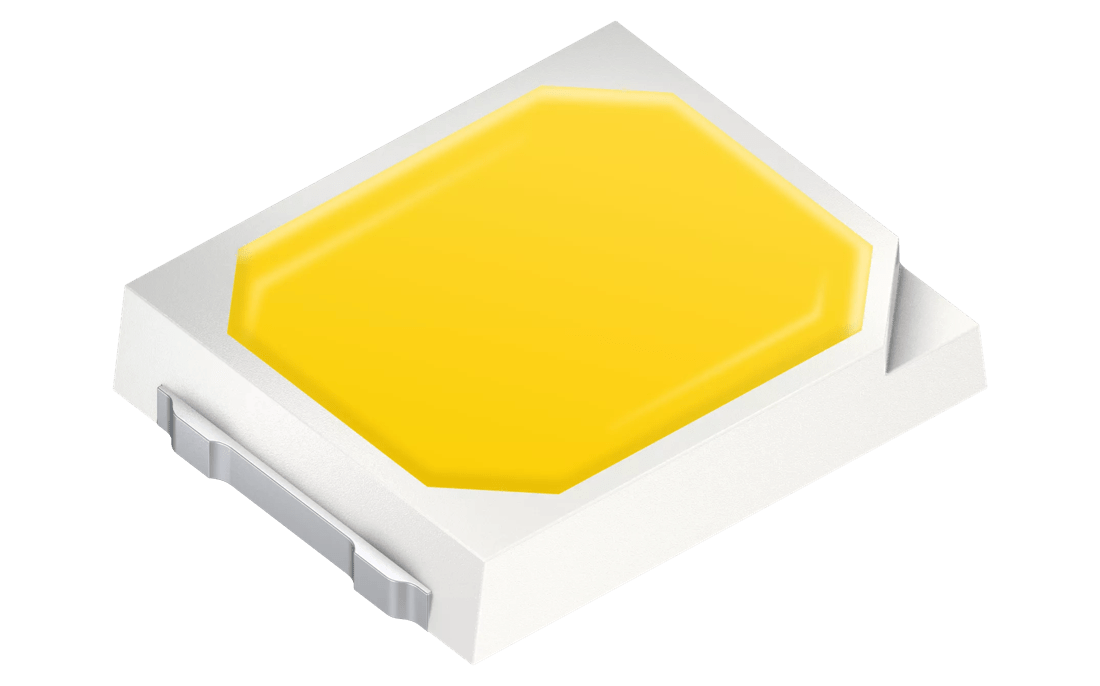

The DURIS® E 2835 combines good efficacy and a wide beam angle into a compact format (2.8 mm x 3.5 mm). This is key to homogeneous illumination applications where the DURIS® E 2835 never fails to impress with its performance on system level.

Datasheet Choose product

Application note Optical simulation CAD files Electrical simulation Tools Contact us Support

Downloads

Datasheet

GW JTLPS1.CM

Datasheet / 2.0 MB

GW JTLPS1.CM_GEN 2

Datasheet / 2.0 MB

GW JTLPS1.CM_Plus

Datasheet / 2.0 MB

Application note

Brilliant Mix and Mix-to-Match — Professional white for general lighting applications

Product related / 1.7 MB

Chemical compatibility of LEDs

General information / 2.0 MB

Comparison of simple LED circuits for low power LEDs

Electrical design / 1.2 MB

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General information / 1.7 MB

Details on photobiological safety of LED light sources

General information / 1.4 MB

Determination of resistances for brightness compensation

Electrical design / 873.5 KB

Dimming InGaN LEDs

Electrical design / 992.7 KB

Dry pack information

Handling recommendations / 1.2 MB

ESD protection while handling LEDs

Handling recommendations / 1.8 MB

Further details on lead free reflow soldering of LEDs

Soldering and processing / 1.4 MB

Handling of silicon resin LEDs

Handling recommendations / 496.2 KB

Importing rayfiles and ray-measurement files of LEDs

General information / 903.2 KB

LED driving technology for long term flexibility

Electrical design / 1.1 MB

LED 可靠性与使用寿命

General information / 1.7 MB

LED 无铅回流焊的详细介绍

Soldering and processing / 1.7 MB

Lebensdauer und Zuverlässigkeit von LEDs

General information / 1.9 MB

Light quality — Color metrics

Product related / 1.6 MB

Light quality — White light parameters

Product related / 2.0 MB

Manual lead-free soldering of LEDs

Soldering and processing / 1.9 MB

Measurement, calibration and measurement uncertainty of LEDs

General information / 2.5 MB

Measuring of the temperature profile during the reflow solder process

Soldering and processing / 1.2 MB

PCB technologies for LED applications

Thermal management / 3.1 MB

Preventing LED failures caused by corrosive materials

General information / 1.2 MB

Processing of SMD LEDs

Soldering and processing / 4.5 MB

Recommended pick-and-place tools for LEDs

Soldering and processing / 6.0 MB

Reliability and lifetime of LEDs

General information / 1.9 MB

The basic principles of Electrical Overstress (EOS)

Electrical design / 1.6 MB

Weitere Hinweise zum bleifrei Reflow-Löten von LEDs

Soldering and processing / 1.4 MB

欧司朗光电半导体有限公司 LED 的测量、

General information / 2.4 MB

Optical simulation

Optical Simulation

Optical simulation

Download

CAD files

CAD Data

CAD files

Download

Electrical simulation

Electrical Simulation

Electrical simulation

Download

Ordering codes

Product Type	Description	Order No.	Availability
GW JTLPS1.CM-HNKM-XX510-1-3-B	Φ_V = 44.0 ... 76.0 lm, 2200 K (I_F = 150 mA)	Q65112A9784	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now
GW JTLPS1.CM-JLLK-XX57-1-3-B	Φ_V = 52.0 ... 84.0 lm, 3000 K (I_F = 150 mA)	Q65112A9782	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now
GW JTLPS1.CM-JLLK-XX58-1-3-B	Φ_V = 52.0 ... 84.0 lm, 2700 K (I_F = 150 mA)	Q65112A9783	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now
GW JTLPS1.CM-JMLL-XX51-1-3-B	Φ_V = 56.0 ... 88.0 lm, 6500 K (I_F = 150 mA)	Q65112A9785	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now
GW JTLPS1.CM-JMLL-XX52-1-3-B	Φ_V = 56.0 ... 88.0 lm, 5700 K (I_F = 150 mA)	Q65112A9778	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now
GW JTLPS1.CM-JMLL-XX53-1-3-B	Φ_V = 56.0 ... 88.0 lm, 5000 K (I_F = 150 mA)	Q65112A9779	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now
GW JTLPS1.CM-JMLL-XX55-1-3-B	Φ_V = 56.0 ... 88.0 lm, 4000 K (I_F = 150 mA)	Q65112A9780	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now
GW JTLPS1.CM-JMLL-XX56-1-3-B	Φ_V = 56.0 ... 88.0 lm, 3500 K (I_F = 150 mA)	Q65112A9781	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now
GW JTLPS1.CM-HNKK-XX510-1	Φ_V = 44.0 ... 68.0 lm, 2200 K (I_F = 150 mA)	Q65113A2622	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product	Order now
GW JTLPS1.CM-JLKL-XX58-1	Φ_V = 52.0 ... 72.0 lm, 2700 K (I_F = 150 mA)	Q65113A2625	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product	Order now
GW JTLPS1.CM-JMKM-XX57-1	Φ_V = 56.0 ... 76.0 lm, 3000 K (I_F = 150 mA)	Q65113A2627	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product	Order now
GW JTLPS1.CM-JMKM-XX56-1	Φ_V = 56.0 ... 76.0 lm, 3500 K (I_F = 150 mA)	Q65113A2630	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product	Order now
GW JTLPS1.CM-JNKN-XX55-1	Φ_V = 60.0 ... 80.0 lm, 4000 K (I_F = 150 mA)	Q65113A2631	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product	Order now
GW JTLPS1.CM-JNKN-XX53-1	Φ_V = 60.0 ... 80.0 lm, 5000 K (I_F = 150 mA)	Q65113A2632	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product	Order now
GW JTLPS1.CM-JNKN-XX52-1	Φ_V = 60.0 ... 80.0 lm, 5700 K (I_F = 150 mA)	Q65113A2633	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product	Order now
GW JTLPS1.CM-JNKN-XX51-1	Φ_V = 60.0 ... 80.0 lm, 6500 K (I_F = 150 mA)	Q65113A2634	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product	Order now
GW JTLPS1.CM-HNKK-XX510-1-A	Φ_V = 44.0 ... 68.0 lm, 2200 K (I_F = 150 mA)	Q65112A8286	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product	Order now
GW JTLPS1.CM-JMKN-XX58-1-A	Φ_V = 56.0 ... 80.0 lm, 2700 K (I_F = 150 mA)	Q65112A8288	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now
GW JTLPS1.CM-JMKN-XX57-1-A	Φ_V = 56.0 ... 80.0 lm, 3000 K (I_F = 150 mA)	Q65112A8287	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now
GW JTLPS1.CM-JNLK-XX56-1-A	Φ_V = 60.0 ... 84.0 lm, 3500 K (I_F = 150 mA)	Q65112A8293	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now
GW JTLPS1.CM-JNLK-XX55-1-A	Φ_V = 60.0 ... 84.0 lm, 4000 K (I_F = 150 mA)	Q65112A8292	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now
GW JTLPS1.CM-JNLK-XX53-1-A	Φ_V = 60.0 ... 84.0 lm, 5000 K (I_F = 150 mA)	Q65112A8291	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now
GW JTLPS1.CM-JNLK-XX52-1-A	Φ_V = 60.0 ... 84.0 lm, 5700 K (I_F = 150 mA)	Q65112A8290	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now
GW JTLPS1.CM-JNLK-XX51-1-A	Φ_V = 60.0 ... 84.0 lm, 6500 K (I_F = 150 mA)	Q65112A8289	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Digi-Key Buy now
