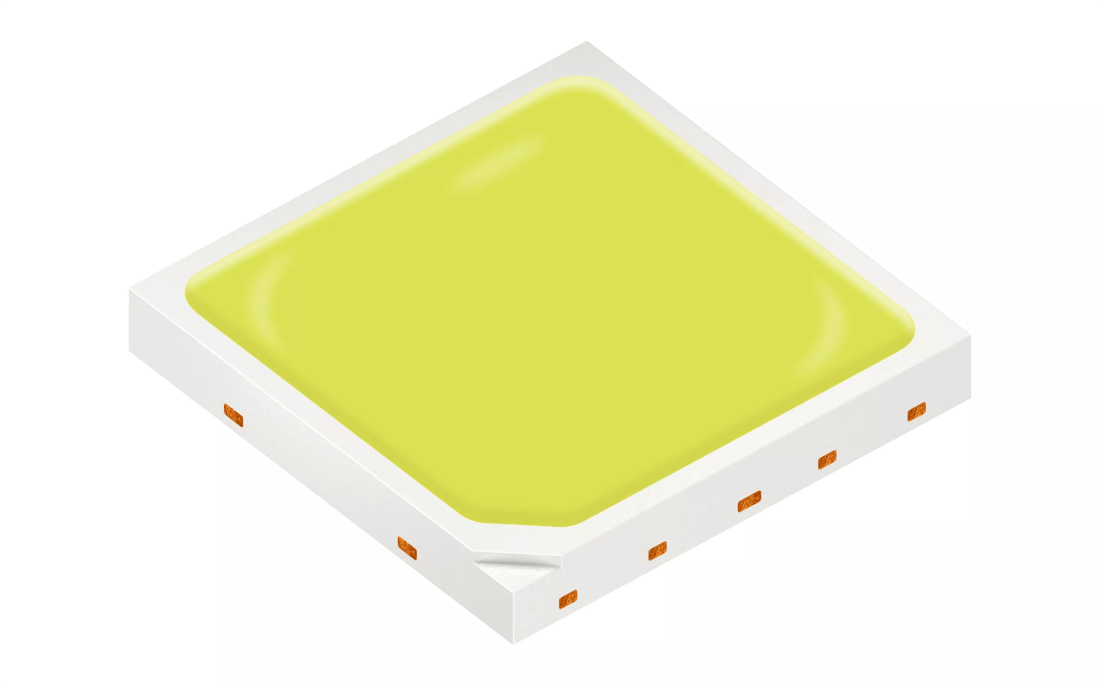

OSRAM OSCONIQ™ S 5050, GW Q9LR32.HW

×

Description

OSCONIQ™ S 5050 Horti White is the ideal white LED that enables luminaires to maximize system level photon efficacy performance for horticulture applications. Unlike conventional white LEDs, ams OSRAM’s Horti White LEDs utilizes a customized phosphor solution designed to facilitate the increase of non-converted red photons to deliver superior fixture level efficacy.
Datasheet
GW Q9LR32.HW
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
0.99 W
High
Brightness
ΦV
241 lm
IV
79.3 cd
ΦE
641 mW
IE
211 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
100 °C
Dimension
l
5.0 mm
w
5.0 mm
h
0.7 mm

Ordering information

Product Type Description Ordering code Availability
GW Q9LR32.HW-AEAF-M1-1 ΦE = 609 ... 672 mW (IF = 180 mA) Q65113A2695 Full production
GW Q9LR32.HW-AFAG-M2-1 ΦE = 640 ... 706 mW (IF = 180 mA) Q65113A5890 Full production
GW Q9LR32.HW-AFAG-M3-1 ΦE = 640 ... 706 mW (IF = 180 mA) Q65113A5889 Full production
