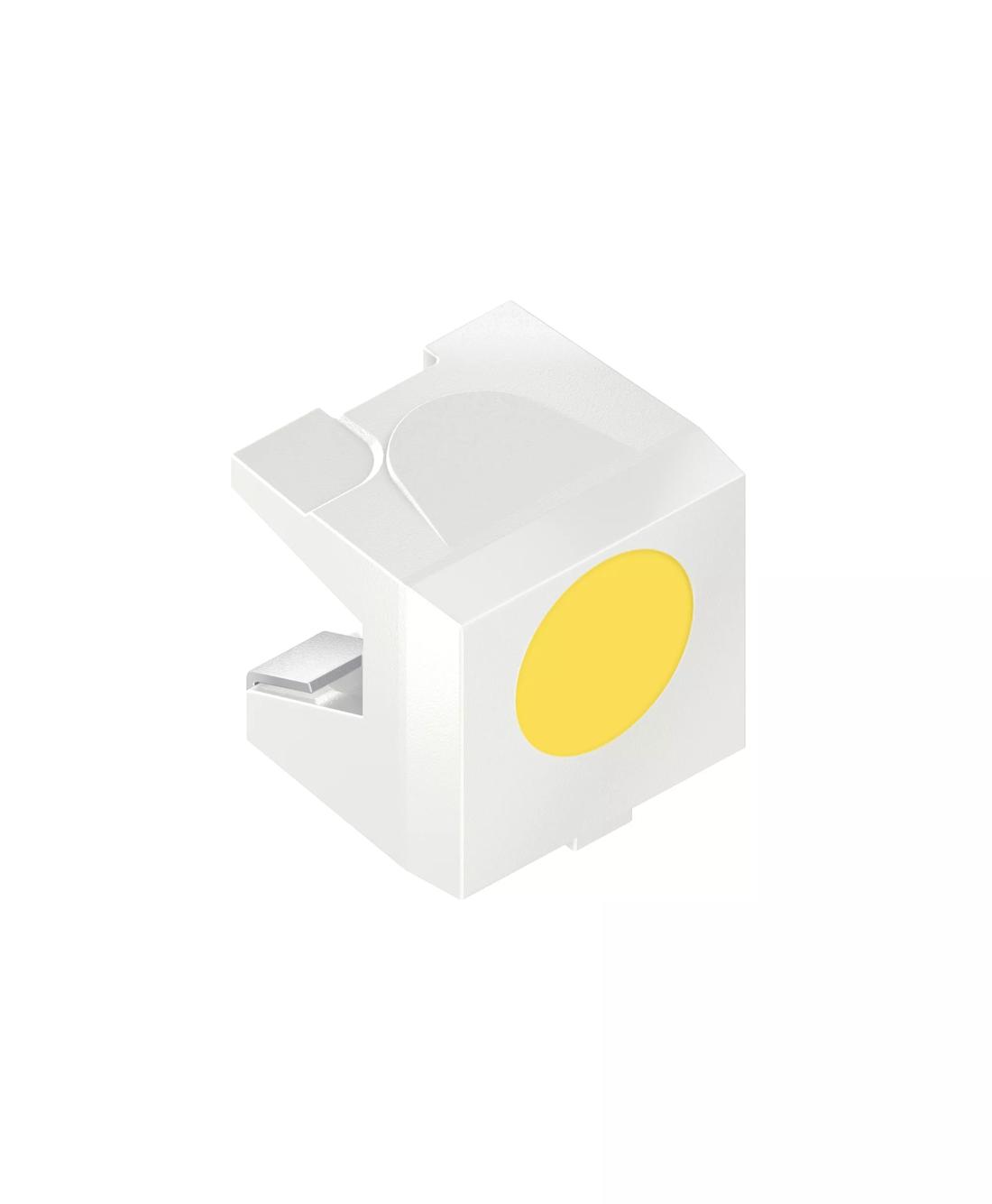

Details
Parameters
Color of emission
White
Electrical power
0.06
W
Low
Brightness
ΦV
4.78
lm
IV
1.57
cd
ΦE
15.3
mW
IE
5.01
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
110
°C
Dimension
l
4.0
mm
w
4.0
mm
h
3.6
mm
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|
| LW A6SG-V2BA-FK0PN0 | Iv = 900 ... 2240 mcd (IF = 20 mA) | Q65113A1198 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
