OSRAM SYNIOS® P2720, KW DMLN31.SG

OSRAM SYNIOS® P2720, KW DMLN31.SG
Not for new design
×
Not for new design

Description

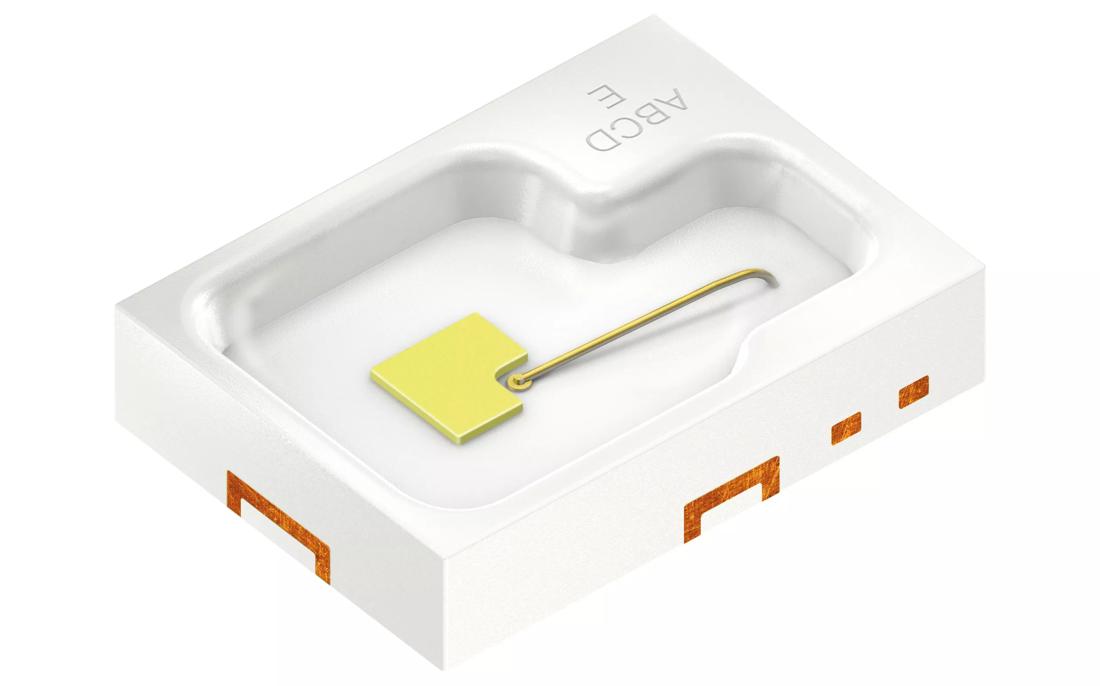

This compact LED device is part of the SYNIOS P2720 family. Given the scalability of this product family, it provides full performance and flexibility with just one footprint. The KW DMLN31.SG product is meant to provide superior light quality in ¼ mm² chip size class.
Datasheet
KW DMLN31.SG
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
0.6 W
Mid
Brightness
ΦV
70 lm
IV
23.2 cd
ΦE
223 mW
IE
73.9 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
2.75 mm
w
2.0 mm
h
0.6 mm

Ordering codes

Product Type Description Order No. Availability
KW DMLN31.SG-6J6K-ebvF46fcbB46-8E8G ΦV = 50 ... 90 lm (IF = 200 mA) Q65111A6228
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
