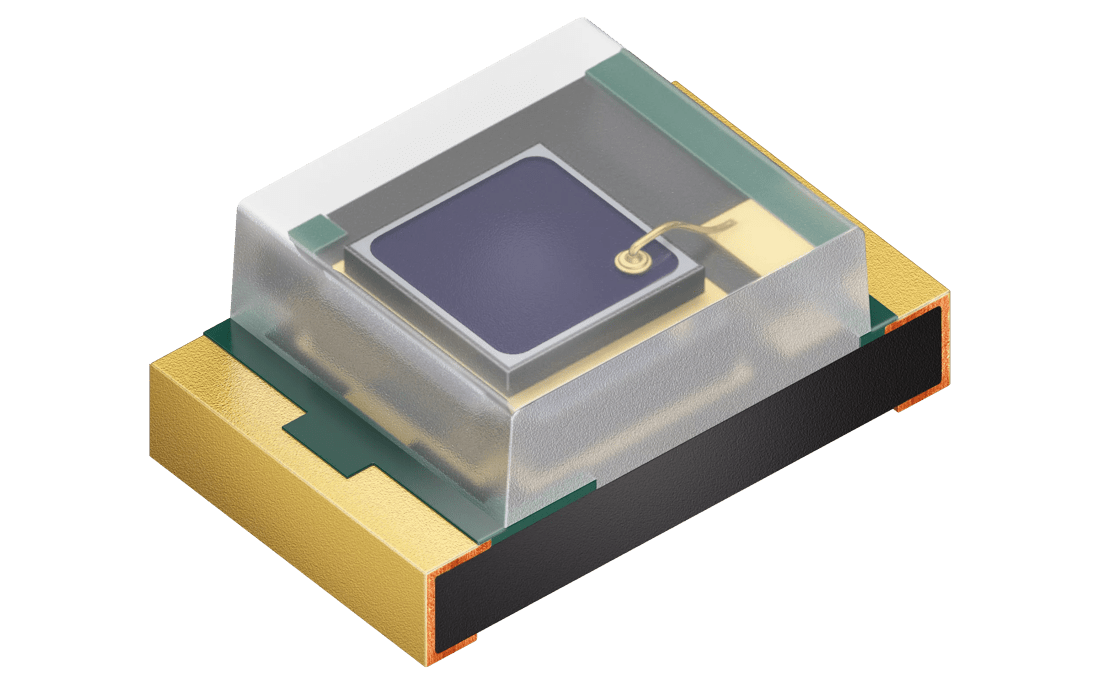

OSRAM Chip LED, SFH 2700 A01

×

Description

Silicon PIN Photodiode
Datasheet
SFH 2700 A01
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Photocurrent
1.5 µA
Fall time
tf
0.12 µs
Rise time
tf
0.12 µs
Spectral range of sensitivity typ.
λ10% min.
300 nm
λ10% max.
1100 nm
Radiant sensitive area
A
0.35 mm²
Beam angle
∢
140 °
Dimension
l
2.0 mm
w
1.25 mm
h
0.8 mm
Operating temperature
Top min.
-40 °C
Top max.
100 °C

Ordering information

Product Type Description Ordering code Availability
SFH 2700 A01 IP = ≥ 1.33 µA, (IP=1.5 typ.) (Ee=0.5 mW/cm²) Q65112A4786 Full production

Downloads

Datasheets
SFH 2700 A01 · Datasheet · PDF · en_US

Application note
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images
SFH 2700 · Images · TIF
