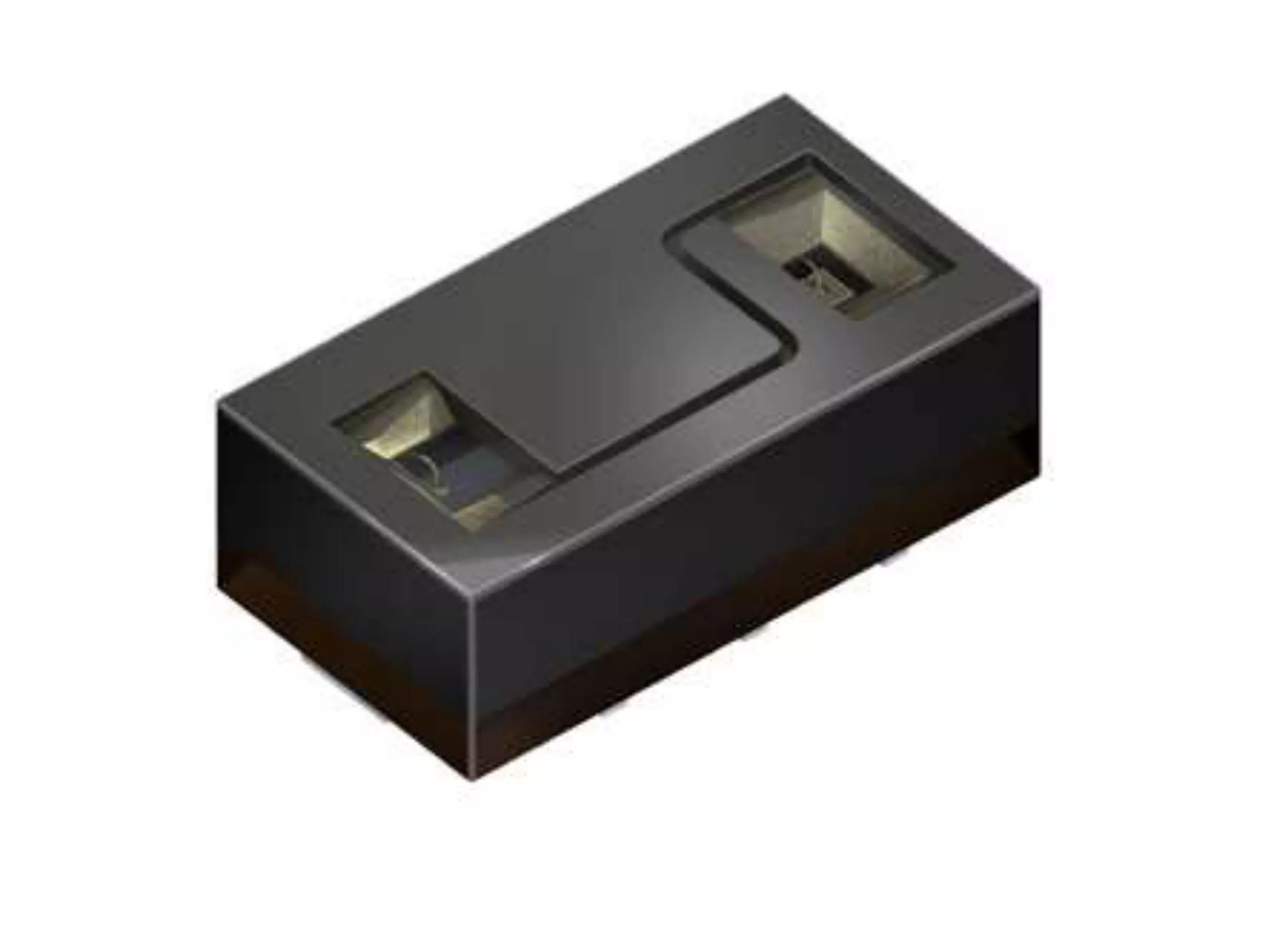

OSRAM Chip on board, SFH 7779

OSRAM Chip on board, SFH 7779
×

Product features

Ambient Light and Proximity Sensor with Integrated 940nm IR Emitter

Downloads

Datasheet

SFH 7779

Datasheet / 3.2 MB

Application note

SFH 7779 (IR-LED + proximity sensor + ambient light sensor)

Product Related / 3.0 MB

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General Information / 1.7 MB

Dry pack information

General Information / 1.2 MB

Optical simulation

Optical Simulation

Optical simulation

CAD files

CAD Data

CAD files

Ordering codes

Product Type Description Order No. Availability
SFH 7779 Proximity sensor: Detection range up to 160 mm/ Ambient light sensor: Detection range 0.0022 - 73000 lx Q65111A4810
