ams AS5013_QF_EVM_AB Evaluation board

ams AS5013_QF_EVM_AB Evaluation board
×

Description

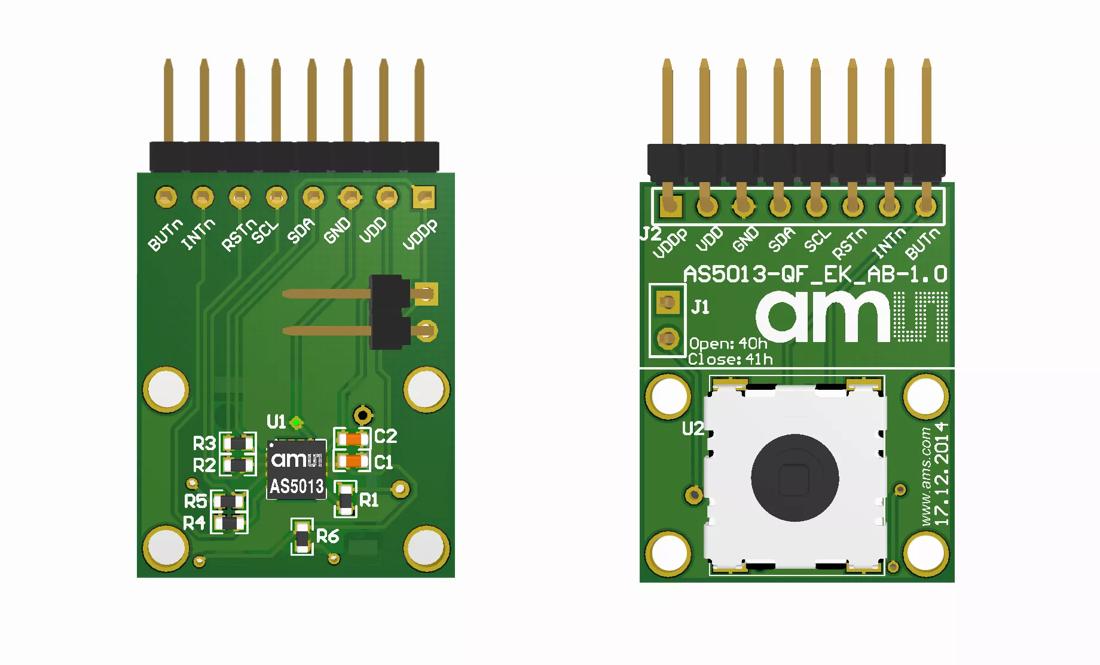

The AS5013 Adapter Board allows an easy and fast evaluation of the AS5013 contactless miniature joystick. By moving the EasyPoint module on the front side of the board it is possible to check the functionality of the AS5013. To connect the AS5013 on the adapter board to a microcontroller the single row 2.54mm 8-pin header is used. The adapter board can be easily connected to an existing application.
User guide Select & order
Contact us Support

Ordering codes

Product Type Description Order No. Availability
AS5013-QF_EK_AB
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product

Downloads

For other documents visit our Download center

User guides

AS5013_UG000318_1-00

User guide
EN
DE
CN
JP
