ams AS5XXX_EVM_CB_UNIVERSAL Evaluation board
×
Downloads
For other documents visit our
Download center
User guides
AS5xxx_UCB_QG000118_1-00
Quick start guide
Images

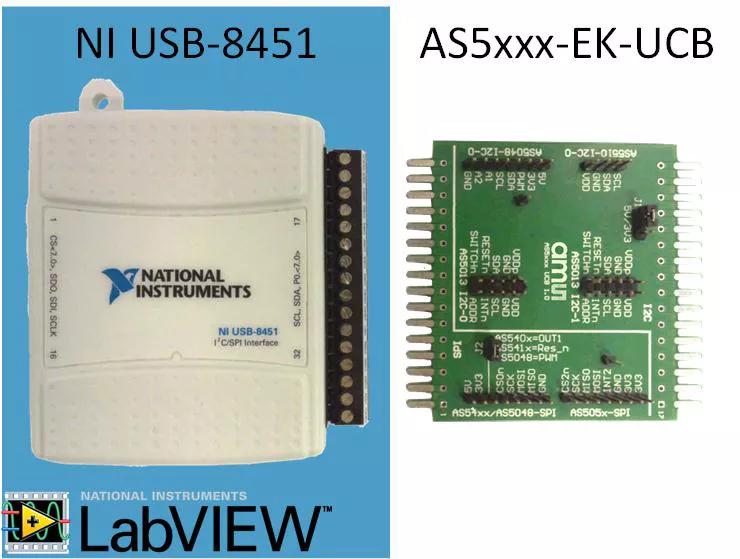

AS5xxxUniversalConnectorBoard
Related boards, kits & accessories
ams AS5050A_QF_EVM_AB Evaluation board
The AS5050A Adapter Board allows you an easy-to-use evaluation of the principle function of the AS5050A magnetic position sensor in your own system design. This small board includes the position sensor with its necessary external components. All relevant signals are available on a 2.54mm header footprint and can be easily wired to your own application.
ams AS5013_QF_EVM_AB Evaluation board
The AS5013 Adapter Board allows an easy and fast evaluation of the AS5013 contactless miniature joystick. By moving the EasyPoint module on the front side of the board it is possible to check the functionality of the AS5013. To connect the AS5013 on the adapter board to a microcontroller the single row 2.54mm 8-pin header is used. The adapter board can be easily connected to an existing application.
ams AS5055A_QF_EVM_AB Evaluation board
The AS5055A Adapter Board allows you an easy-to-use evaluation of the principle function of the AS5055A magnetic position sensor in your own system design. This small board includes the position sensor with its necessary external components. All relevant signals are available on a 2.54mm header footprint and can be easily wired to your own application.
ams AS5048A_TS_EVM_AB Evaluation board
The AS5048A (SPI-Version) Adapter Board allows you an easy-to-use evaluation of the principle function of the AS5048A magnetic position sensor in your own system design. This small factor board includes the position sensor with its necessary external components. All relevant signals are available on a 2.54mm header footprint and can be easily wired to your own application.
ams AS5048B_TS_EVM_AB Evaluation board
The AS5048B (I²C-Version) Adapter Board allows you an easy-to-use evaluation of the principle function of the AS5048B magnetic position sensor in your own system design. This small factor board includes the position sensor with its necessary external components. All relevant signals are available on a 2.54mm header footprint and can be easily wired to your own application.
Related Products
ams AS5013 EasyPoint™ Miniature Joystick
The AS5013 is an absolute position sensor for miniature joystick applications with maximum strokes of +/-2.0mm in x- and y-direction based on contactless magnetic sensor technology. To measure xy-movement the sensor needs a simple 2-pole magnet. The absolute xy-position is measured with a resolution of 8 bit = 256 positions and it is provided as a digital value on the serial interface (I²C).With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.
ams AS5048A High-Resolution Position Sensor
The AS5048A is a 14-bit rotary position sensor (previously known as encoder) for absolute angular measurement and with a PWM (=pulse width modulation) output over a full turn of 360° based on contactless magnetic sensor technology. This device fits perfectly for on-axis applications where a simple 2-pole magnet rotates above or below the sensor IC and the zero position can be programmed into the device simply with a SPI command. The absolute magnet angular position is measured with a resolution of 14 bit = 16384 positions per revolution and it is provided as a digital value on the serial interface (SPI).With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.
ams AS5055A Position Sensor
The AS5055A is a new version of the AS5055. It is a 12-bit rotary position sensor (previously known as encoder) for absolute angular measurement over a full turn of 360° based on contactless magnetic sensor technology. This device fits perfectly for on-axis applications where a simple 2-pole magnet rotates above or below the sensor IC. The absolute magnet angular position is measured with a resolution of 12 bit = 4096 positions per revolution and it is provided as a digital value on the serial interface (SPI).With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.
ams AS5050A Rotary Sensor
The AS5050A is a new version of the AS5050. It is a 10-bit rotary position sensor (previously known as encoder) for absolute angular measurement over a full turn of 360° based on contactless magnetic sensor technology. This device fits perfectly for on-axis applications where a simple 2-pole magnet rotates above or below the sensor IC. The absolute magnet angular position is measured with a resolution of 10 bit = 1024 positions per revolution and it is provided as a digital value on the serial interface (SPI).With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.
ams AS5048B High Resolution Position Sensor
The AS5048B is a 14-bit rotary position sensor (previously known as encoder) for absolute angular measurement and with a PWM (=pulse width modulation) output over a full turn of 360° based on contactless magnetic sensor technology. This device fits perfectly for on-axis applications where a simple 2-pole magnet rotates above or below the sensor IC and the zero position can be programmed into the device simply with a I²C command. The absolute magnet angular position is measured with a resolution of 14 bit = 16384 positions per revolution and it is provided as a digital value on the serial interface (I²C).With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.
