ams AS5510_SO_EVM_AB Evaluation board

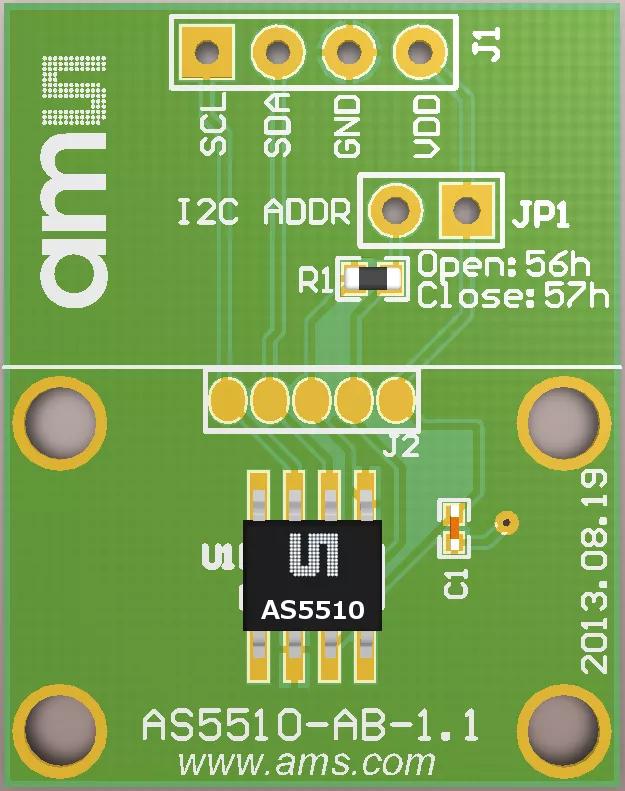

With the AS5510-SOIC8 Adapter Board it is possible to get an easy evaluation possibility of the AS5510 linear incremental magnetic position sensor in SOIC8 package. This breakout board is fitting to any I²C bus system. Power up the board (2.5V to 3.6V supply), and you can immediately start measuring the magnetic field passing through the position sensor. The position of a simple 2-pole magnet moving horizontally over the IC can be easily determined. This small evaluation board is fully assembled with AS5510 position sensor in SOIC8 package and its necessary external components. You can easily integrate the AS5510-SOIC8 Adapter Board to your own application by using the single row 4-pin header, where an easy access is possible.
