ams AS5510 Linear Position Sensor

Description

The AS5510 is an absolute position sensor for linear applications with short strokes (0.5 to 2.0mm) based on contactless magnetic sensor technology. To measure a lateral movement the sensor needs a simple 2-pole magnet and the measured distance depends on the magnet geometry. The absolute position is measured with a resolution of 10 bit = 1024 positions and it is provided as a digital value on the serial interface (I²C).

With two decades of magnetic sensor system know-how, we have broad experience in selecting the most suitable magnets. ams experts recommend the following magnet suppliers.

Details

Features

  • Contactless position measurement
  • Power down mode
  • Simple configuration over the I²C interface
  • 10-bit resolution

Benefits

  • Highest reliability and durability
  • Ideal for battery powered devices
  • Easy to use
  • High resolution output

Parameters

Operating ambient temperature
min.
-30 °C
max.
85 °C
Package

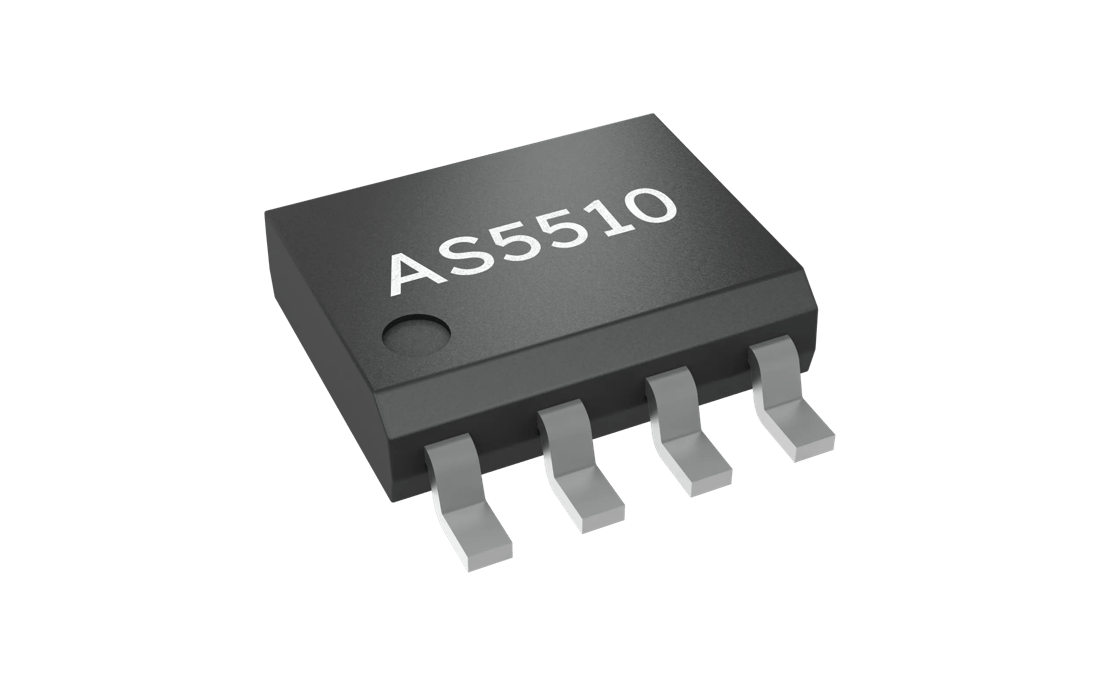

8pin SOIC
6pin WL-CSP 1.4x1.1mm

Ordering codes

Product Type Description Order No. Availability
AS5510-DSOM 8pin SOIC Mini Reel 500pcs Q65114A0694
AS5510-DSOT 8pin SOIC Tape & Reel 2.500pcs Q65114A0693
AS5510-DWLM 6pin WL-CSP 1.4x1.1mm Mini Reel 1000pcs Q65114A0696
AS5510-DWLT 6pin WL-CSP 1.4x1.1mm Tape & Reel 12.000pcs Q65114A0695
