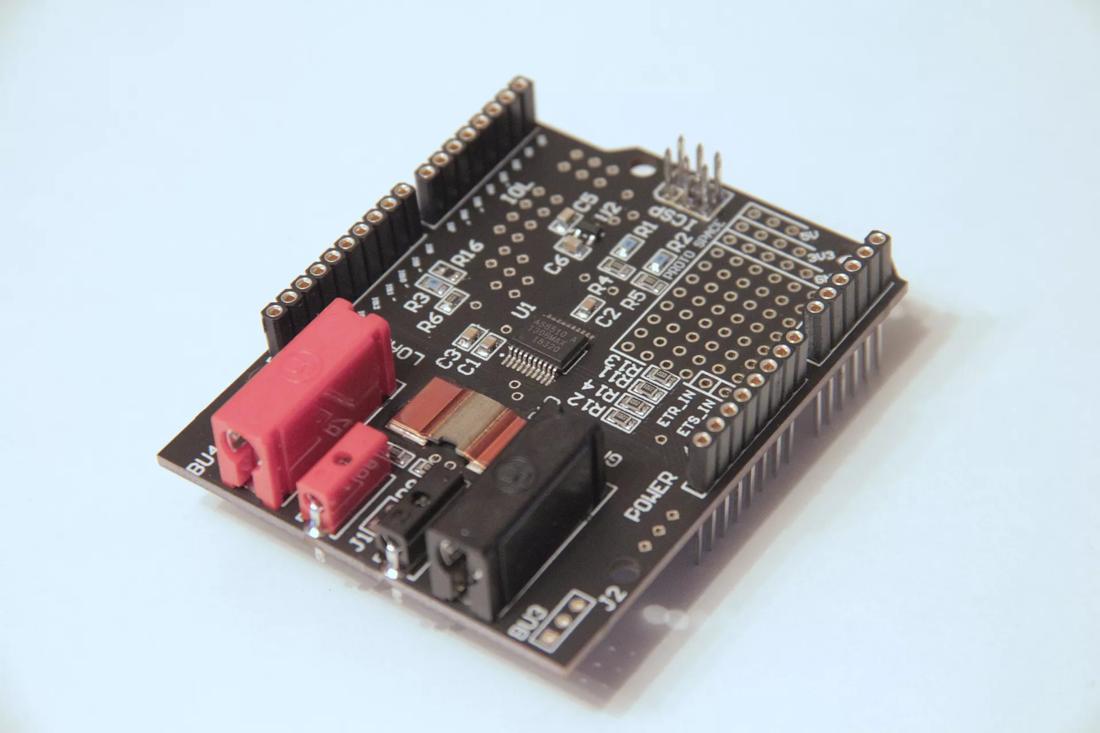

ams AS8510_REF_RB_ARDUINOSHIELD Reference design board



The AS8510 Arduino Shield Reference Design is an add-on to the very popular Arduino Series of µC development boards. The reference design allows to measure current and voltage via the AS8510 A/D IC and to use the measured data in any Arduino sketch. Schematic and layout are available as download with no restrictions. Libraries to interface to the Arduino IDE as well as example code can be downloaded for easy setup of this board. For use of this AS8510 Arduino reference design an Arduino Uno (or similar) host board is required:
