ams AS5510_DEM Demonstrator kit

ams AS5510_DEM Demonstrator kit
×

Description

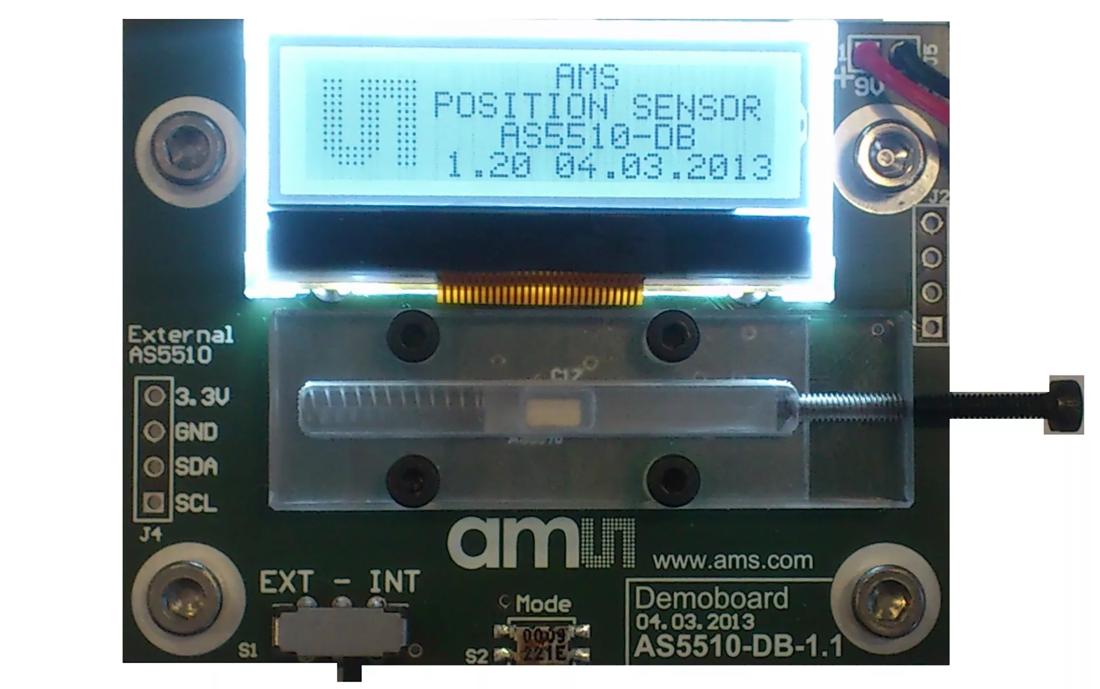

The AS5510 Demo Kit allows you an easy-to-use evaluation of the principle function of the AS5510 linear incremental magnetic position sensor without additional hardware and software effort. This kit consists of a reference magnet with its holder and an LCD display. It is suitable for mechanical and hardware reference design. The AS5510 Demo Kit is used in standalone mode through LCD display, powered by the USB port or 9V battery in order to be able evaluating all the functionalities of the AS5510 magnetic position sensor.
User guide Select & order
Contact us Support

Ordering codes

Product Type Description Order No. Availability
AS5510-WL_EK_DB
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product

Downloads

User guides

AS5510_DK_UG000144_2-00

User guide
EN
DE
CN
JP
